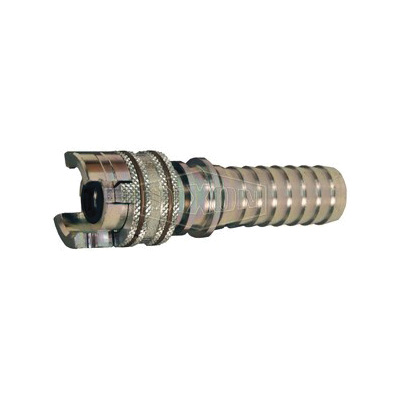

Dixon® 4PS4 Dual Lock Thor Interchange Quick Acting Coupling With Locking Sleeve, 1/2 in, Hose Barb, Steel, Plated
PHL-8
MFG #: 4PS4
$46.17
/ EA
Estimated Delivery in 3 to 4 Business Days
- Manufacturer: Dixon Valve & Coupling
- Type: Dual Lock Thor Interchange
- Nominal Size: 1/2
- End Style: Hose Barb
- Length: 3-29/32
- Pressure Rating: 300
- Material: Steel
- Finish: Plated
- Dimensions: 1-9/16 in W
- Brand: Dixon®
Dixon® Quick Acting Coupling, Dual Lock Thor Interchange, 1/2 in Nominal Size, Hose Barb, 3-29/32 in Length, 300 psi, Steel, Plated, 1-9/16 in W
- Spring loaded interlocking engagement
- Full opening permits full flow to tool
- Trivalent chrome plated
- Interchanges with national A type, Dixon quick coupling P type and thor PHC series couplings
- 1/2 in body
- Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that
- Dixon cannot assume liability for misapplication of production resulting in equipment down-time, los
- 300 psi at 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or
- Do not use in connection with drinking water
- Wash hands after handling
Spring loaded interlocking engagement
Full opening permits full flow to tool
Trivalent chrome plated
Interchanges with national A type, Dixon quick coupling P type and thor PHC series couplings
1/2 in body
Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination
Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death
300 psi at 70 deg F pressure
Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
Do not use in connection with drinking water
Wash hands after handling
