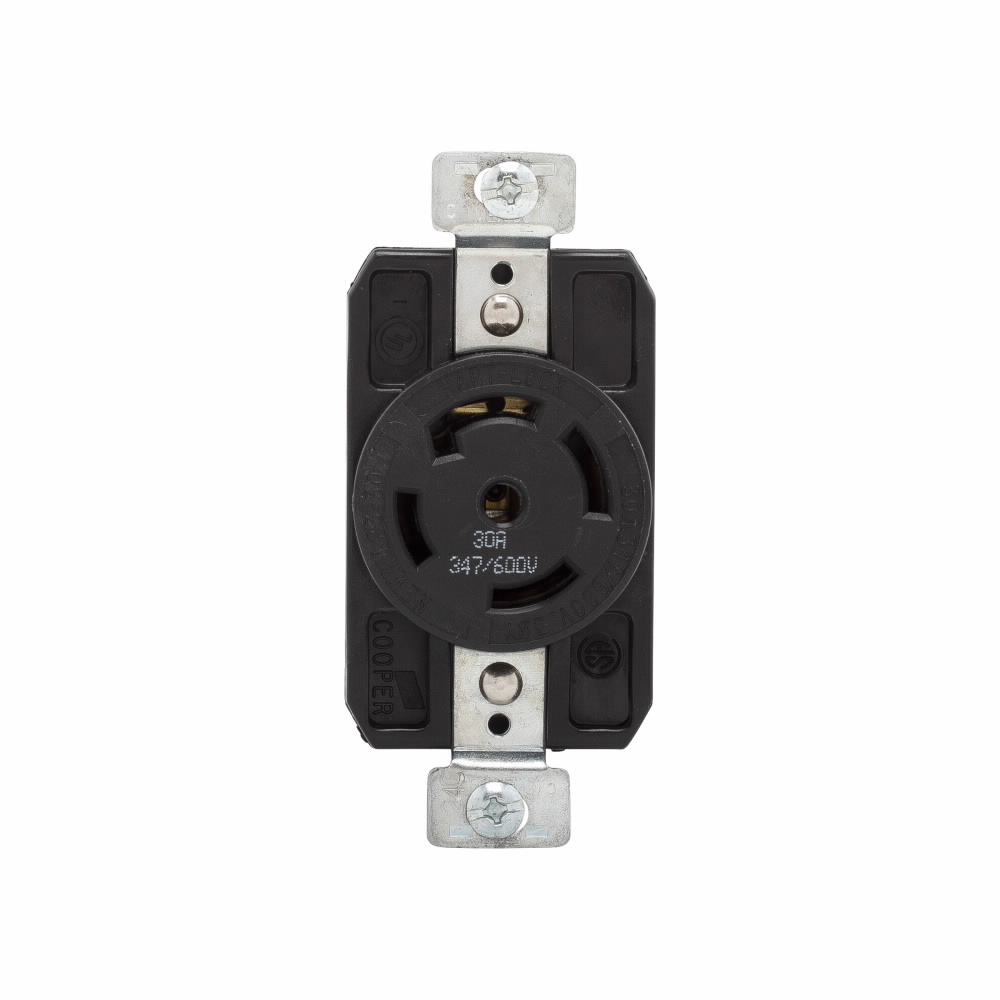

EATON Hart-Lock® AHL2330R Single Locking Receptacle, 347/600 V, 30 A, 4 Poles, 5 Wires, Black

AHL2330R MFG #: AHL2330R
$79.54 / EA
Non-Stock Item
EATON Hart-Lock® AHL2330R Single Locking Receptacle, 347/600 V, 30 A, 4 Poles, 5 Wires, Black
  • Manufacturer: Eaton
  • Request For Quote: No
  • Type: 3-Phase Single
  • Voltage Rating: 347/600
  • Amperage Rating: 30
  • Number of Poles: 4
  • Number of Wires: 5
  • NEMA Rating: NEMA L23-30
  • Grade: Industrial
  • Cord Diameter: 0.63 to 1.16
  • Temperature Rating: -40 to 105
  • Terminal Type: Back and Side Wired/Screw
  • Material: Glass Filled Nylon
  • Color: Black
  • Dimensions: 1.62 in W x 1.12 in D
  • Brand: EATON
EATON Hart-Lock® Locking Receptacle, Single, 347/600 V, 30 A, 4 Pole, 5 Wires, L23 to 30 NEMA Rating, Industrial Grade, 0.63 to 1.16 in Diameter Cord, -40 to 105 deg C, Back/Side Wire/Screw Terminal, Glass-Filled Nylon, Black, 1.62 in W x 1.12 in D Dimensions
QTY
Add to List
  • Brass contact
  • 14 to 8 AWG wire
Brass contact
14 to 8 AWG wire
