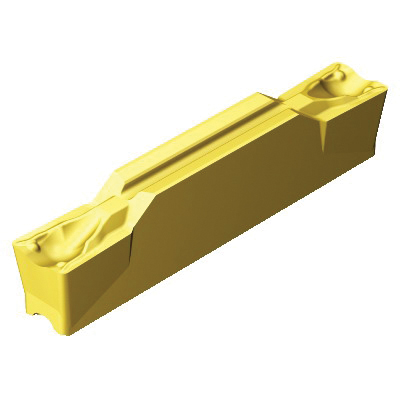

Sandvik Coromant 5735827 CoroCut® 1-2 1-Sided Turning Insert, ANSI Code: N123G2-0300-0003-TF 2135, N123 Insert, Material Grade: H, K, M, N, P, S, G2 Insert, G Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 2135
11093994PH
MFG #: 5735827
$58.34
/ EA
Non-Stock Item
- ANSI Code: N123G2-0300-0003-TF 2135
- Brand: Sandvik Coromant
- Chipbreaker: TF
- Corner Radius: 0.012
- Cutting Direction: Neutral
- Finish: CVD-TiCN+Al2O3+TiN Coated
- For Use On: Cast Iron, Hardened Materials, Heat Resistant Super Alloys, Non-Ferrous Metals, Stainless Steel and Steel
- Insert Size: G2
- Insert Style: N123
- ISO Code: N123G2-0300-0003-TF 2135
- Manufacturer: Sandvik Coromant
- Manufacturer's Grade: 2135
- Material: Carbide
- Material Grade: H, K, M, N, P, S
- Maximum Depth of Cut: 0.071
- Rake: Positive
- Relief Angle: 7
- Seat Size: G
- Series: CoroCut® 1-2
- Thickness: 0.1691
- Type: 1-Sided
- Width: 0.118
Sandvik Coromant Turning Insert, 1-Sided, Series: CoroCut® 1-2, N123 Insert, G2 Insert, 0.071 in Maximum Depth of Cut, 0.1691 in Thickness, 0.118 in Width, G Seat, Positive Rake, TF Chipbreaker, 0.012 in Corner Radius, Manufacturer's Grade: 2135, ANSI Code: N123G2-0300-0003-TF 2135, ISO Code: N123G2-0300-0003-TF 2135, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Cast Iron, Hardened Materials, Heat-Resistant Super Alloys, Non-Ferrous Metals, Stainless Steel and Steel
- Versatile parting and grooving
- Cost efficiency with two edges
- Secure and efficient machining
- Profiling inserts for high-precision profiling operations
- Neutral, right- and left-hand style inserts with geometries dedicated for parting off
- Grooving inserts in many widths and with many corner radii
- Inserts for hard part turning at high feed rates
- Blanks for do-it-yourself grinding
Versatile parting and grooving
Cost efficiency with two edges
Secure and efficient machining
Profiling inserts for high-precision profiling operations
Neutral, right- and left-hand style inserts with geometries dedicated for parting off
Grooving inserts in many widths and with many corner radii
Inserts for hard part turning at high feed rates
Blanks for do-it-yourself grinding
