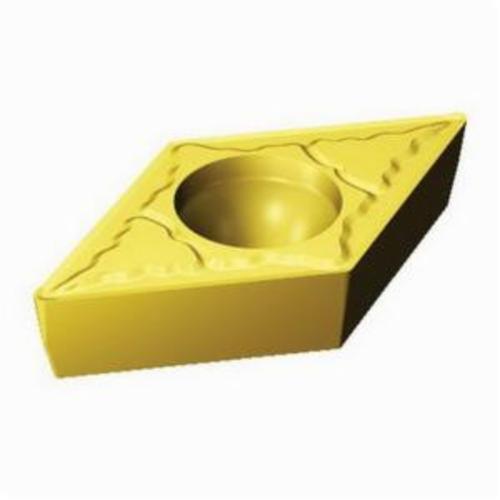

Sandvik Coromant 5730973 CoroTurn® 107 Turning Insert, ANSI Code: DCMT 3(2.5)1-MM 1025, DCMT Insert, Material Grade: M, S, 3(2.5)1 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 1025
11188855
MFG #: 5730973
$20.68
/ EA
Non-Stock Item
- ANSI Code: DCMT 3(2.5)1-MM 1025
- Brand: Sandvik Coromant
- Chipbreaker: MM
- Corner Radius: 0.016
- Cutting Direction: Neutral
- Finish: PVD-TiAlN+TiN Coated
- For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium
- Hole Diameter: 0.1732
- Included Angle: 55
- Inscribed Circle: 3/8
- Insert Size: 3(2.5)1
- Insert Style: DCMT
- ISO Code: DCMT 11 T3 04-MM 1025
- Manufacturer: Sandvik Coromant
- Manufacturer's Grade: 1025
- Material: Carbide
- Material Grade: M, S
- Maximum Depth of Cut: 3
- Rake: Positive
- Relief Angle: 7
- Seat Size: 11
- Series: CoroTurn® 107
- Shape: Diamond
- Thickness: 0.1562
Sandvik Coromant Turning Insert, Series: CoroTurn® 107, DCMT Insert, 3(2.5)1 Insert, Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 11 Seat, Positive Rake, MM Chipbreaker, 0.016 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: DCMT 3(2.5)1-MM 1025, ISO Code: DCMT 11 T3 04-MM 1025, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, S, For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium
- When turning internally or machining slender components, you can rely on the super sharp cutting edg
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high qua
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
