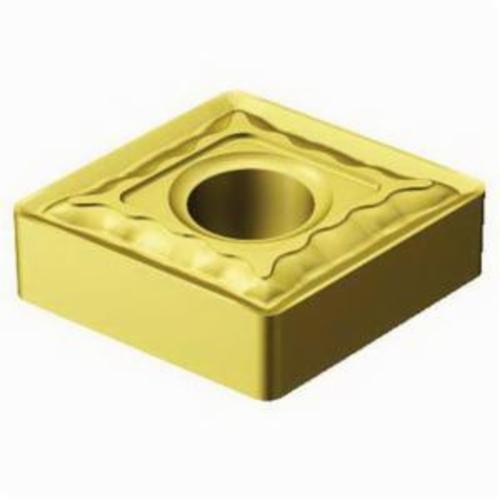

Sandvik Coromant 5724813 T-Max® P Turning Insert, ANSI Code: CNMG 432-QM 1005, CNMG Insert, Material Grade: M, S, 432 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium
11251575
MFG #: 5724813
$20.48
/ EA
Non-Stock Item
- ANSI Code: CNMG 432-QM 1005
- Brand: Sandvik Coromant
- Chipbreaker: QM
- Corner Radius: 0.0312
- Cutting Direction: Neutral
- Finish: PVD-TiAlN+TiN Coated
- For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium
- Hole Diameter: 0.2029
- Included Angle: 80
- Inscribed Circle: 1/2
- Insert Size: 432
- Insert Style: CNMG
- ISO Code: CNMG 12 04 08-QM 1005
- Manufacturer: Sandvik Coromant
- Manufacturer's Grade: 1005
- Material: Carbide
- Material Grade: M, S
- Maximum Depth of Cut: 0.157
- Rake: Negative
- Relief Angle: 0
- Seat Size: 12
- Series: T-Max® P
- Shape: Rhombic
- Thickness: 0.187
Sandvik Coromant Turning Insert, Series: T-Max® P, CNMG Insert, 432 Insert, Rhombic, 0.157 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 12 Seat, Negative Rake, QM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 1005, ANSI Code: CNMG 432-QM 1005, ISO Code: CNMG 12 04 08-QM 1005, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, S, For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium
