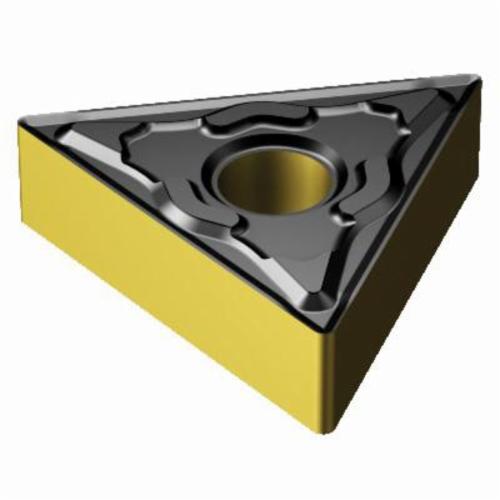

Sandvik Coromant 5753857 T-Max® P Basic Shape Turning Insert, ANSI Code: TNMG 331-KF 3215, TNMG Insert, Material Grade: K, 331 Insert, Triangular Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturer's Grade: 3215
11775385
MFG #: 5753857
$33.05
/ EA
Non-Stock Item
- ANSI Code: TNMG 331-KF 3215
- Brand: Sandvik Coromant
- Chipbreaker: KF
- Corner Radius: 0.0156
- Cutting Direction: Neutral
- Finish: CVD-TiCN+Al2O3+TiN Coated
- For Use On: Cast Iron
- Hole Diameter: 0.15
- Included Angle: 60
- Inscribed Circle: 3/8
- Insert Size: 331
- Insert Style: TNMG
- ISO Code: TNMG 16 04 04-KF 3215
- Length: 0.649
- Manufacturer: Sandvik Coromant
- Manufacturer's Grade: 3215
- Material: Carbide
- Material Grade: K
- Maximum Depth of Cut: 0.079
- Rake: Negative
- Relief Angle: 0
- Seat Size: 16
- Series: T-Max® P
- Shape: Triangle
- Thickness: 0.187
- Type: Basic Shape
Sandvik Coromant Turning Insert, Basic Shape, Series: T-Max® P, TNMG Insert, 331 Insert, Triangular, 0.079 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 0.649 in Length, 16 Seat, Negative Rake, KF Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 3215, ANSI Code: TNMG 331-KF 3215, ISO Code: TNMG 16 04 04-KF 3215, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, For Use On: Cast Iron
