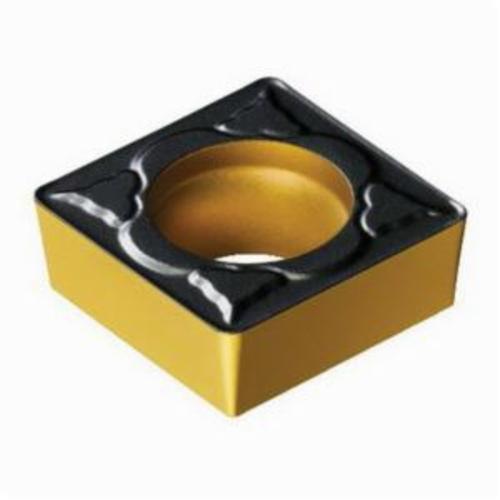

Sandvik Coromant 5749407 CoroTurn® 107 Turning Insert, ANSI Code: SCMT 3(2.5)2-PM 4225, SCMT Insert, Material Grade: K, P, 3(2.5)2 Insert, Squared Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

12085566 MFG #: 5749407
$34.88 / EA
Non-Stock Item
Sandvik Coromant 5749407 CoroTurn® 107 Turning Insert, ANSI Code: SCMT 3(2.5)2-PM 4225, SCMT Insert, Material Grade: K, P, 3(2.5)2 Insert, Squared Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide
  • ANSI Code: SCMT 3(2.5)2-PM 4225
  • Brand: Sandvik Coromant
  • Chipbreaker: PM
  • Corner Radius: 0.0312
  • Cutting Direction: Neutral
  • Finish: CVD-TiCN+Al2O3+TiN Coated
  • For Use On: Cast Iron and Steel
  • Hole Diameter: 0.1732
  • Included Angle: 90
  • Inscribed Circle: 3/8
  • Insert Size: 3(2.5)2
  • Insert Style: SCMT
  • ISO Code: SCMT 09 T3 08-PM 4225
  • Length: 3/8
  • Manufacturer: Sandvik Coromant
  • Manufacturer's Grade: 4225
  • Material: Carbide
  • Material Grade: K, P
  • Maximum Depth of Cut: 3
  • Rake: Positive
  • Relief Angle: 7
  • Seat Size: 09
  • Series: CoroTurn® 107
  • Shape: Square
  • Thickness: 0.156
  • Width: 3/8
Sandvik Coromant Turning Insert, Series: CoroTurn® 107, SCMT Insert, 3(2.5)2 Insert, Squared, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.156 in Thickness, 3/8 in Width, 3/8 in Length, 09 Seat, Positive Rake, PM Chipbreaker, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 4225, ANSI Code: SCMT 3(2.5)2-PM 4225, ISO Code: SCMT 09 T3 08-PM 4225, 90 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
QTY
Add to List
  • When turning internally or machining slender components, you can rely on the super sharp cutting edg
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high qua
  • Wiper geometries available for high feeds and high quality surface finish
  • Ground, super sharp insert offer for exceptional surface finish
  • 40 to 60 deg countersunk hole and non-flat surface
When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
40 to 60 deg countersunk hole and non-flat surface
