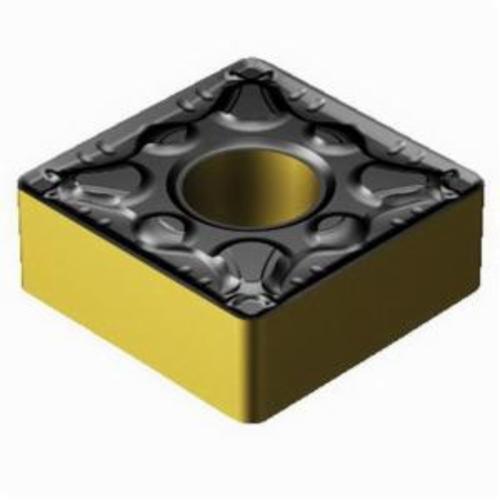

Sandvik Coromant 5750094 T-Max® P Turning Insert, ANSI Code: SNMG 432-PM 4225, SNMG Insert, Material Grade: K, P, 432 Insert, Squared Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturer's Grade: 4225
12085791
MFG #: 5750094
$38.76
/ EA
Non-Stock Item
- ANSI Code: SNMG 432-PM 4225
- Brand: Sandvik Coromant
- Chipbreaker: PM
- Corner Radius: 0.0312
- Cutting Direction: Neutral
- Finish: CVD-TiCN+Al2O3+TiN Coated
- For Use On: Cast Iron and Steel
- Hole Diameter: 0.2029
- Included Angle: 90
- Inscribed Circle: 1/2
- Insert Size: 432
- Insert Style: SNMG
- ISO Code: SNMG 12 04 08-PM 4225
- Length: 1/2
- Manufacturer: Sandvik Coromant
- Manufacturer's Grade: 4225
- Material: Carbide
- Material Grade: K, P
- Maximum Depth of Cut: 6
- Rake: Negative
- Relief Angle: 0
- Seat Size: 12
- Series: T-Max® P
- Shape: Square
- Thickness: 0.187
- Width: 1/2
Sandvik Coromant Turning Insert, Series: T-Max® P, SNMG Insert, 432 Insert, Squared, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, PM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4225, ANSI Code: SNMG 432-PM 4225, ISO Code: SNMG 12 04 08-PM 4225, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
- Excellent surface finish
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools™
Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools™
