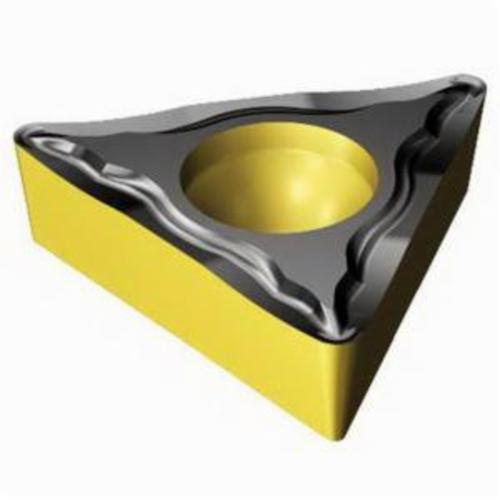

  • Sandvik Coromant 5752481 CoroTurn® 107 Turning Insert, ANSI Code: TCMT 2(1.5)1-UM 4225, TCMT Insert, Material Grade: K, P, 2(1.5)1 Insert, Triangular Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

Sandvik Coromant 5752481 CoroTurn® 107 Turning Insert, ANSI Code: TCMT 2(1.5)1-UM 4225, TCMT Insert, Material Grade: K, P, 2(1.5)1 Insert, Triangular Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

12086771 MFG #: 5752481
$33.86 / EA
Non-Stock Item
Sandvik Coromant 5752481 CoroTurn® 107 Turning Insert, ANSI Code: TCMT 2(1.5)1-UM 4225, TCMT Insert, Material Grade: K, P, 2(1.5)1 Insert, Triangular Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide
  • ANSI Code: TCMT 2(1.5)1-UM 4225
  • Brand: Sandvik Coromant
  • Chipbreaker: UM
  • Corner Radius: 0.016
  • Cutting Direction: Neutral
  • Finish: CVD-TiCN+Al2O3+TiN Coated
  • For Use On: Cast Iron and Steel
  • Hole Diameter: 0.1102
  • Included Angle: 60
  • Inscribed Circle: 1/4
  • Insert Size: 2(1.5)1
  • Insert Style: TCMT
  • ISO Code: TCMT 11 02 04-UM 4225
  • Manufacturer: Sandvik Coromant
  • Manufacturer's Grade: 4225
  • Material: Carbide
  • Material Grade: K, P
  • Maximum Depth of Cut: 3
  • Rake: Positive
  • Relief Angle: 7
  • Seat Size: 11
  • Series: CoroTurn® 107
  • Shape: Triangle
  • Thickness: 0.094
Sandvik Coromant Turning Insert, Series: CoroTurn® 107, TCMT Insert, 2(1.5)1 Insert, Triangular, 3 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.094 in Thickness, 11 Seat, Positive Rake, UM Chipbreaker, 0.016 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 4225, ANSI Code: TCMT 2(1.5)1-UM 4225, ISO Code: TCMT 11 02 04-UM 4225, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
QTY
Add to List
  • When turning internally or machining slender components, you can rely on the super sharp cutting edg
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high qua
  • Ground, super sharp insert offer for exceptional surface finish
  • Wiper geometries available for high feeds and high quality surface finish
When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Wiper geometries available for high feeds and high quality surface finish
