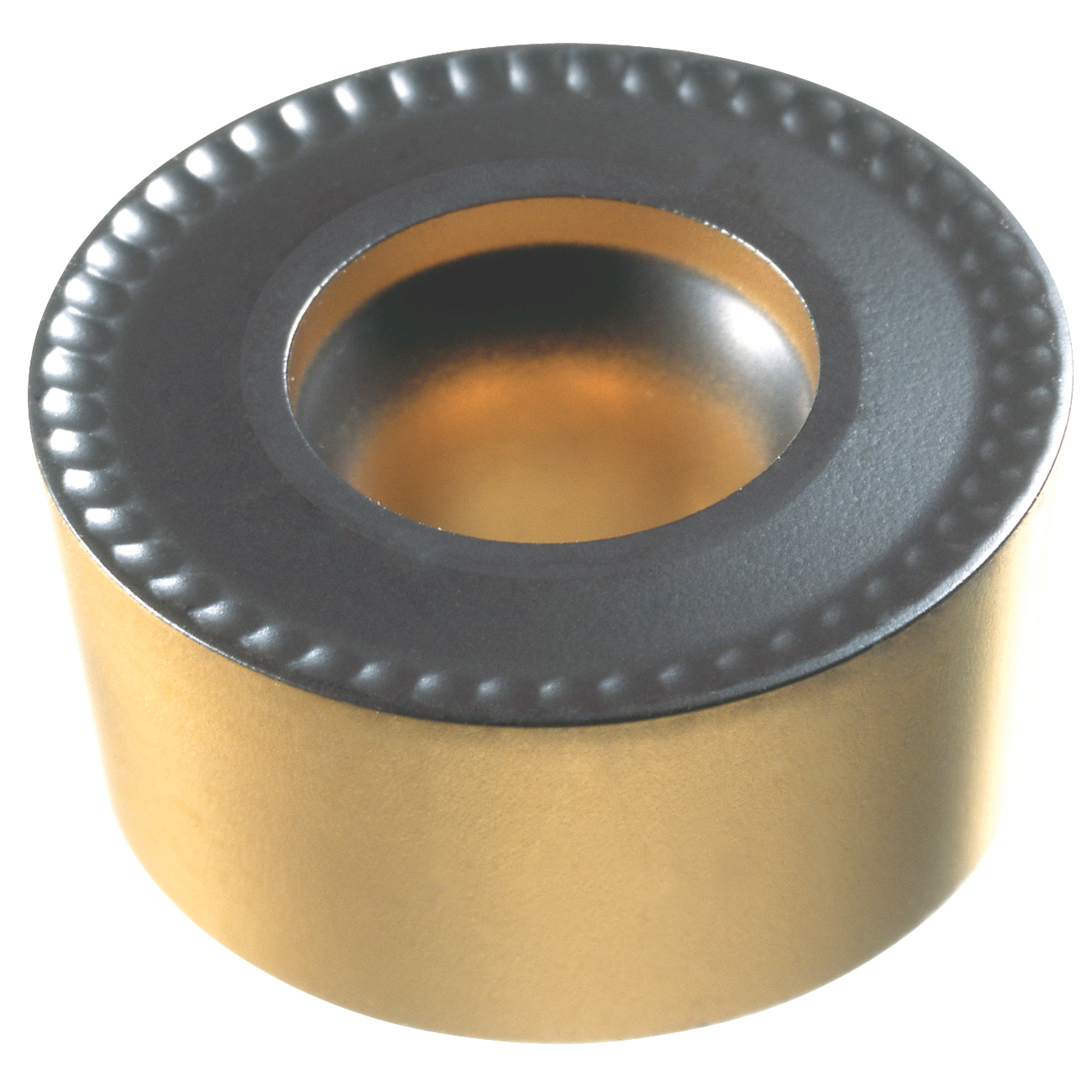

Sandvik Coromant 5740674 CoroTurn® 107 1-Sided Basic Shape Turning Insert, ANSI Code: RCMT 3(2.5) 4235, RCMT Insert, Material Grade: K, M, P, 3(2.5) Insert, Round Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 4235
12222022
MFG #: 5740674
$31.21
/ EA
Non-Stock Item
- ANSI Code: RCMT 3(2.5) 4235
- Brand: Sandvik Coromant
- Corner Radius: 0.187
- Cutting Direction: Neutral
- Finish: CVD-TiCN+Al2O3+TiN Coated
- For Use On: Cast Iron, Stainless Steel and Steel
- Hole Diameter: 0.1574
- Inscribed Circle: 3/8
- Insert Size: 3(2.5)
- Insert Style: RCMT
- ISO Code: RCMT 09 T3 00 4235
- Manufacturer: Sandvik Coromant
- Manufacturer's Grade: 4235
- Material: Carbide
- Material Grade: K, M, P
- Maximum Depth of Cut: 0.15
- Rake: Positive
- Relief Angle: 7
- Seat Size: 09
- Series: CoroTurn® 107
- Shape: Round
- Thickness: 0.156
- Type: 1-Sided Basic Shape
Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn® 107, RCMT Insert, 3(2.5) Insert, Round, 0.15 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.156 in Thickness, 09 Seat, Positive Rake, 0.187 in Corner Radius, 0.1574 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: RCMT 3(2.5) 4235, ISO Code: RCMT 09 T3 00 4235, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, M, P, For Use On: Cast Iron, Stainless Steel and Steel
- Exceptional surface finish when turning internally or machining slender components, you can rely on
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high qua
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
