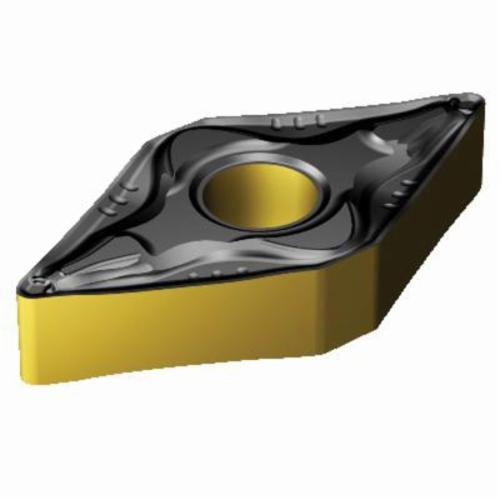

Sandvik Coromant 5730885 T-Max® P Turning Insert, ANSI Code: DNMG 331-PM 4235, DNMG Insert, Material Grade: K, M, P, 331 Insert, Rhombic Shape, 11 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Stainless Steel and Steel, Carbide
12223186
MFG #: 5730885
$39.98
/ EA
Non-Stock Item
- ANSI Code: DNMG 331-PM 4235
- Brand: Sandvik Coromant
- Chipbreaker: PM
- Corner Radius: 0.0156
- Cutting Direction: Neutral
- Finish: CVD-TiCN+Al2O3+TiN Coated
- For Use On: Cast Iron, Stainless Steel and Steel
- Hole Diameter: 0.15
- Included Angle: 55
- Inscribed Circle: 3/8
- Insert Size: 331
- Insert Style: DNMG
- ISO Code: DNMG 11 04 04-PM 4235
- Manufacturer: Sandvik Coromant
- Manufacturer's Grade: 4235
- Material: Carbide
- Material Grade: K, M, P
- Maximum Depth of Cut: 0.197
- Rake: Negative
- Relief Angle: 0
- Seat Size: 11
- Series: T-Max® P
- Shape: Rhombic
- Thickness: 0.1874
Sandvik Coromant Turning Insert, Series: T-Max® P, DNMG Insert, 331 Insert, Rhombic, 0.197 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 11 Seat, Negative Rake, PM Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: DNMG 331-PM 4235, ISO Code: DNMG 11 04 04-PM 4235, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, M, P, For Use On: Cast Iron, Stainless Steel and Steel
