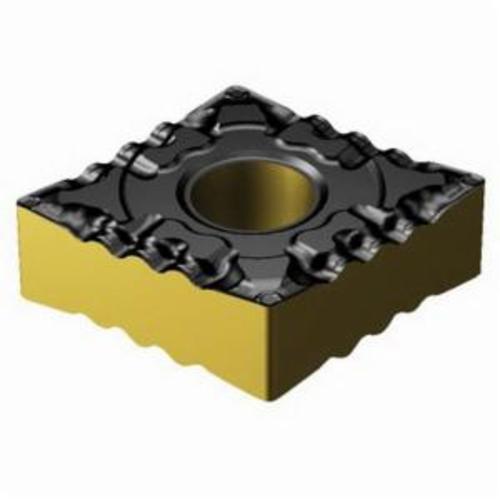

Sandvik Coromant 5724738 T-Max® P Turning Insert, ANSI Code: CNMG 431-PF 4215, CNMG Insert, Material Grade: K, M, P, 431 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Stainless Steel and Steel, Carbide
12228602
MFG #: 5724738
$38.76
/ EA
Non-Stock Item
- ANSI Code: CNMG 431-PF 4215
- Brand: Sandvik Coromant
- Chipbreaker: PF
- Corner Radius: 0.016
- Cutting Direction: Neutral
- Finish: CVD-TiCN+Al2O3+TiN Coated
- For Use On: Cast Iron, Stainless Steel and Steel
- Hole Diameter: 0.2029
- Included Angle: 80
- Inscribed Circle: 1/2
- Insert Size: 431
- Insert Style: CNMG
- ISO Code: CNMG 12 04 04-PF 4215
- Manufacturer: Sandvik Coromant
- Manufacturer's Grade: 4215
- Material: Carbide
- Material Grade: K, M, P
- Maximum Depth of Cut: 0.059
- Rake: Negative
- Relief Angle: 0
- Seat Size: 12
- Series: T-Max® P
- Shape: Rhombic
- Thickness: 0.187
Sandvik Coromant Turning Insert, Series: T-Max® P, CNMG Insert, 431 Insert, Rhombic, 0.059 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 12 Seat, Negative Rake, PF Chipbreaker, 0.016 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4215, ANSI Code: CNMG 431-PF 4215, ISO Code: CNMG 12 04 04-PF 4215, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, M, P, For Use On: Cast Iron, Stainless Steel and Steel
