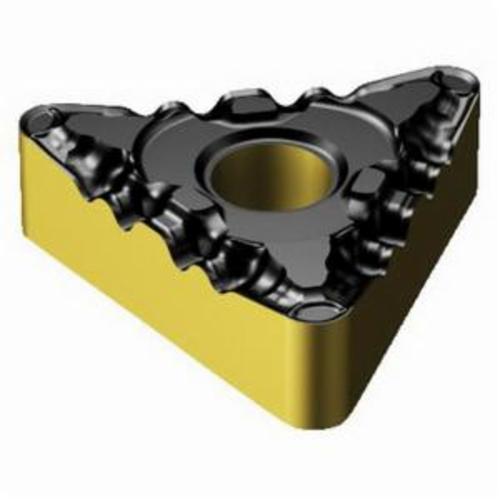

Sandvik Coromant 5753996 T-Max® P Basic Shape Turning Insert, ANSI Code: TNMG 331-PF 4215, TNMG Insert, Material Grade: P, 331 Insert, Triangular Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: 4215
12228742
MFG #: 5753996
$33.86
/ EA
Non-Stock Item
- ANSI Code: TNMG 331-PF 4215
- Brand: Sandvik Coromant
- Chipbreaker: PF
- Corner Radius: 0.0156
- Cutting Direction: Neutral
- Finish: CVD-TiCN+Al2O3+TiN Coated
- For Use On: Steel
- Hole Diameter: 0.15
- Included Angle: 60
- Inscribed Circle: 3/8
- Insert Size: 331
- Insert Style: TNMG
- ISO Code: TNMG 16 04 04-PF 4215
- Length: 0.649
- Manufacturer: Sandvik Coromant
- Manufacturer's Grade: 4215
- Material: Carbide
- Material Grade: P
- Maximum Depth of Cut: 0.059
- Rake: Negative
- Relief Angle: 0
- Seat Size: 16
- Series: T-Max® P
- Shape: Triangle
- Thickness: 0.187
- Type: Basic Shape
Sandvik Coromant Turning Insert, Basic Shape, Series: T-Max® P, TNMG Insert, 331 Insert, Triangular, 0.059 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 0.649 in Length, 16 Seat, Negative Rake, PF Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4215, ANSI Code: TNMG 331-PF 4215, ISO Code: TNMG 16 04 04-PF 4215, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, For Use On: Steel
