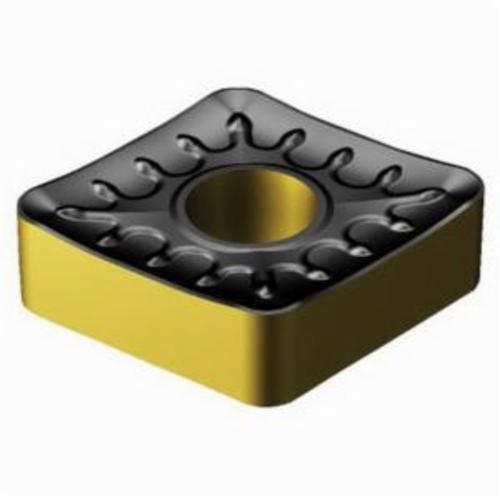

Sandvik Coromant 5725618 T-Max® P Turning Insert, ANSI Code: CNMM 433-QR 4215, CNMM Insert, Material Grade: K, P, 433 Insert, Diamond Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturer's Grade: 4215
12230341
MFG #: 5725618
$38.76
/ EA
Non-Stock Item
- ANSI Code: CNMM 433-QR 4215
- Brand: Sandvik Coromant
- Chipbreaker: QR
- Corner Radius: 0.047
- Cutting Direction: Neutral
- Finish: CVD-TiCN+Al2O3+TiN Coated
- For Use On: Cast Iron and Steel
- Hole Diameter: 0.2029
- Included Angle: 80
- Inscribed Circle: 1/2
- Insert Size: 433
- Insert Style: CNMM
- ISO Code: CNMM 12 04 12-QR 4215
- Manufacturer: Sandvik Coromant
- Manufacturer's Grade: 4215
- Material: Carbide
- Material Grade: K, P
- Maximum Depth of Cut: 8
- Rake: Negative
- Relief Angle: 0
- Seat Size: 12
- Series: T-Max® P
- Shape: Diamond
- Thickness: 0.1874
Sandvik Coromant Turning Insert, Series: T-Max® P, CNMM Insert, 433 Insert, Diamond, 8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 12 Seat, Negative Rake, QR Chipbreaker, 0.047 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4215, ANSI Code: CNMM 433-QR 4215, ISO Code: CNMM 12 04 12-QR 4215, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
- Excellent surface finish
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools™
Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools™
