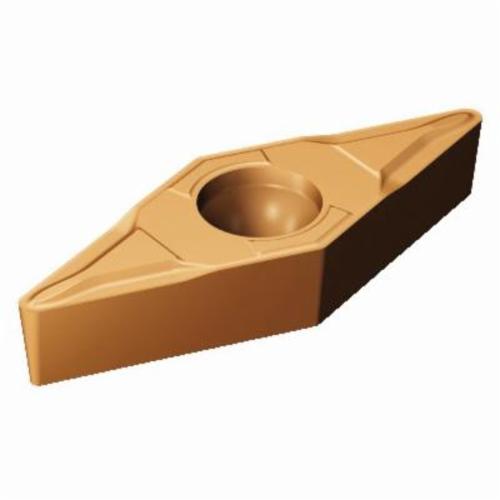

Sandvik Coromant 5755644 CoroTurn® 107 1-Sided Basic Shape Turning Insert, ANSI Code: VBMT 331-MF 1115, VBMT Insert, Material Grade: M, S, 331 Insert, Diamond Shape, 16 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 1115
12385903PH
MFG #: 5755644
$41.36
/ EA
Non-Stock Item
- ANSI Code: VBMT 331-MF 1115
- Brand: Sandvik Coromant
- Chipbreaker: MF
- Corner Radius: 0.016
- Cutting Direction: Neutral
- Finish: PVD-TiAlN+AlCr2O3 Coated
- For Use On: Heat Resistant Super Alloys and Stainless Steel
- Hole Diameter: 0.1732
- Included Angle: 35
- Inscribed Circle: 3/8
- Insert Size: 331
- Insert Style: VBMT
- ISO Code: VBMT 16 04 04-MF 1115
- Length: 0.6537
- Manufacturer: Sandvik Coromant
- Manufacturer's Grade: 1115
- Material: Carbide
- Material Grade: M, S
- Maximum Depth of Cut: 1.8
- Rake: Positive
- Relief Angle: 5
- Seat Size: 16
- Series: CoroTurn® 107
- Shape: Diamond
- Thickness: 0.187
- Type: 1-Sided Basic Shape
Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn® 107, VBMT Insert, 331 Insert, Diamond, 1.8 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 0.6537 in Length, 16 Seat, Positive Rake, MF Chipbreaker, 0.016 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: VBMT 331-MF 1115, ISO Code: VBMT 16 04 04-MF 1115, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, S, For Use On: Heat Resistant Super Alloys and Stainless Steel
- Unobstructed chip flow
- Excellent chip control
- Exceptional surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Holders with conventional and precision coolant design
Unobstructed chip flow
Excellent chip control
Exceptional surface finish
Ground, super sharp insert offer for exceptional surface finish
Holders with conventional and precision coolant design
