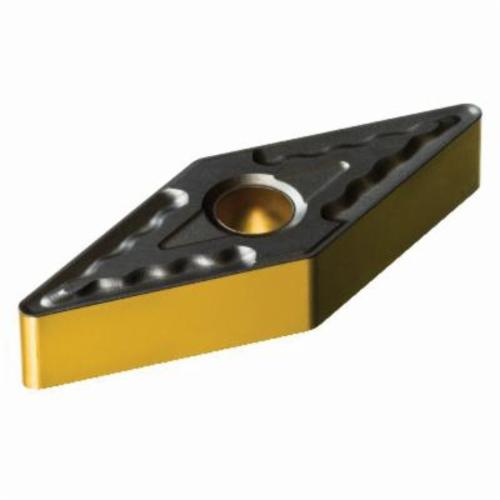

Sandvik Coromant 6434123 T-Max® P 2-Sided Basic Shape Turning Insert, ANSI Code: VNMG 332-QM 4325, VNMG Insert, Material Grade: K, P, 332 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide
26434123
MFG #: 6434123
$48.22
/ EA
Non-Stock Item
- ANSI Code: VNMG 332-QM 4325
- Brand: Sandvik Coromant
- Chipbreaker: QM
- Corner Radius: 0.031
- Cutting Direction: Neutral
- Finish: CVD-TiCN+Al2O3+TiN Coated
- For Use On: Cast Iron and Steel
- Hole Diameter: 0.15
- Included Angle: 35
- Inscribed Circle: 3/8
- Insert Size: 332
- Insert Style: VNMG
- ISO Code: VNMG 16 04 08-QM 4325
- Length: 0.6537
- Manufacturer: Sandvik Coromant
- Manufacturer's Grade: 4325
- Material: Carbide
- Material Grade: K, P
- Maximum Depth of Cut: 4
- Rake: Negative
- Relief Angle: 0
- Seat Size: 16
- Series: T-Max® P
- Shape: Diamond
- Thickness: 0.187
- Type: 2-Sided Basic Shape
Sandvik Coromant Turning Insert, 2-Sided Basic Shape, Series: T-Max® P, VNMG Insert, 332 Insert, Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 0.6537 in Length, 16 Seat, Negative Rake, QM Chipbreaker, 0.031 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: VNMG 332-QM 4325, ISO Code: VNMG 16 04 08-QM 4325, 35 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools™
- Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools™
Excellent surface finish
