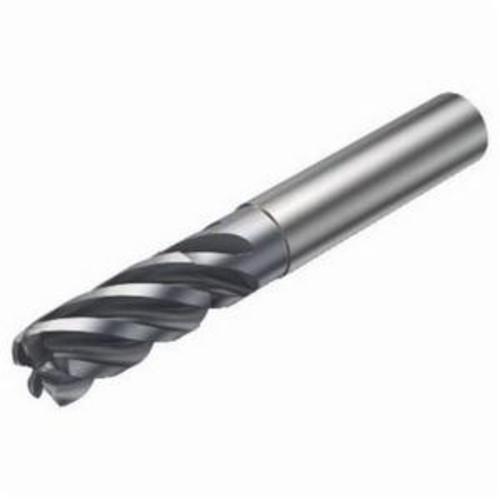

Sandvik Coromant 6732560 CoroMill® Plura Square Shoulder End Mill, 7/16 in Dia Cutter, 1 in Length of Cut, 5 Flutes, 7/16 in Dia Shank, 3-1/2 in OAL, PVD Coated
26732560
MFG #: 6732560
$429.16
/ EA
Non-Stock Item
- ANSI Code: 2F342-1111-076-PC 1730
- Country of Origin: SE
- Cutter Diameter: 7/16 in
- Cutting Direction: Right Hand
- Finish: PVD Coated
- Helix Angle: 38 deg
- ISO Code: 2F342-1111-076-PC 1730
- Length of Cut: 1 in
- Manufacturer Name: Sandvik Coromant
- Material: Solid Carbide
- Number of Flutes: 5
- Overall Length: 3-1/2 in
- Series: CoroMill® Plura
- Shank Diameter: 7/16 in
- Shank Type: Cylindrical
- Type: Square
Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill® Plura, 7/16 in Diameter Cutter, 3-1/2 in Overall Length, 1 in Length of Cut, 5 Flutes, 7/16 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Cylindrical Shank, ANSI Code: 2F342-1111-076-PC 1730, ISO Code: 2F342-1111-076-PC 1730, Solid Carbide, PVD Coated,
- Item Features
- 1730 manufacturer grade
- Cylindrical shank without clamping machine side adaptive interface
- 1.5 mm maximum working engagement
- 1 maximum working engagement ratio
- 10.57 mm Dia body
- 0 - 30 deg body half taper
- 6.67 mm Dia core at face
- 36.513 mm L body
- Without coolant entry
- Cutting pitch differential
- No coolant exit
- 9.589 mm Dia cutting face contact
- 10.57 mm Dia neck
- SFW (EFW) feed direction
- Right helix flute hand
- 10.5 deg radial rake
- 10.5 deg axial rake
- 36.51 mm L usable
- 2 maximum regrinds
- 48.9 mm overhang
