Guhring

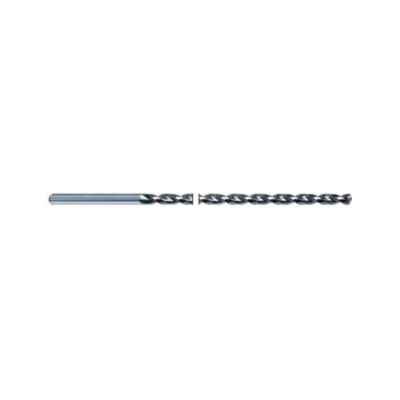

Guhring 9005040033000 504 Type GT100 Deep Hole Long Length Drill, 3.3 mm Drill - Metric, 0.1299 in Drill - Decimal Inch, 250 mm OAL, HSS, Bright

504003.3 MFG #: 9005040033000
$101.90 / EA
Non-Stock Item
Guhring 9005040033000 504 Type GT100 Deep Hole Long Length Drill, 3.3 mm Drill - Metric, 0.1299 in Drill - Decimal Inch, 250 mm OAL, HSS, Bright
  • Applicable Materials: Steel, Gray Cast Iron, Malleable and Spheroidal Iron, Aluminum and Other Non-Ferrous Metals
  • Country of Origin: DE
  • Cutting Depth: 165.05 mm
  • Cutting Direction: Right Hand
  • Cutting Edge Material: HSS
  • Drill Size - Decimal Inch: 0.1299 in
  • Drill Size - Metric: 3.3 mm
  • Finish: Bright
  • Flute Length: 170 mm
  • Flute Type: Wide Parabolic
  • Manufacturer Name: Guhring
  • Material: HSS
  • Number of Flutes: 2
  • Overall Length: 250 mm
  • Point Angle: 130 deg
  • Point Type: Cone Relief
  • Request For Quote: No
  • Series: 504
  • Shank Size: 3.3 mm
  • Shank Type: Straight
  • Type: Type GT100 Deep Hole
Guhring Long Length Drill, Type GT100 Deep Hole, Series: 504, 3.3 mm Drill Size - Metric, 0.1299 in Drill Size - Decimal Inch, 250 mm Overall Length, 165.05 mm Cutting Depth, 2 Flutes, Wide Parabolic Flute, 170 mm Flute Length, 3.3 mm Shank, Straight Shank, 130 deg Point, Cone Relief Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Steel, Gray Cast Iron, Malleable and Spheroidal Iron, Aluminum and Other Non-Ferrous Metals
QTY
Add to List
  • Item Features
  • Application
  • Standards
  • In case of unsatisfactory chip evacuation
  • Without through coolant
For extremely deep holes
DIN 1869|PROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
