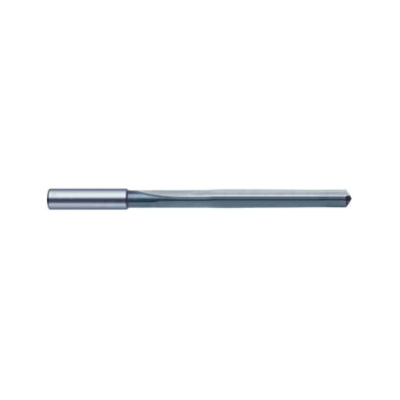

Guhring 9055130145000 5513 Type RT 150 GG Straight Flute Drill, 14.5 mm Drill - Metric, 0.5709 in Drill - Decimal Inch, 185.25 mm D Cutting, 2 Flutes, Carbide
5513014.5
MFG #: 9055130145000
$734.00
/ EA
Non-Stock Item
- Applicable Materials: Aluminum, Other Non-ferrous Metals, Gray Cast Iron, Malleable and Spheroidal Iron
- Country of Origin: DE
- Cutting Depth: 185.25 mm
- Cutting Direction: Right Hand
- Cutting Edge Material: Carbide
- Drill Diameter Measurement System: Metric
- Drill Size - Decimal Inch: 0.5709 in
- Drill Size - Metric: 14.5 mm
- Finish: Bright
- Flute Length: 207 mm
- Flute Type: Straight
- Manufacturer Name: Guhring
- Material: Carbide
- Number of Flutes: 2
- Overall Length: 260 mm
- Point Angle: 120 deg
- Point Type: Cone Relief
- Request For Quote: No
- Series: 5513
- Shank Size: 16 mm
- Shank Type: Straight
- Through Coolant (Yes/No): Yes
- Type: Type RT 150 GG
Guhring Straight Flute Drill, Type RT 150 GG, Series: 5513, Metric Drill Diameter Measurement System, 14.5 mm Drill Size - Metric, 0.5709 in Drill Size - Decimal Inch, 260 mm Overall Length, 185.25 mm Cutting Depth, 2 Flutes, Straight Flute, 207 mm Flute Length, 16 mm Shank, Straight Shank, 120 deg Point, Cone Relief Point, Right Hand Cutting Direction, Carbide Cutting Edge, Applicable Materials: Aluminum, Other Non-ferrous Metals, Gray Cast Iron, Malleable and Spheroidal Iron, Through Coolant (Yes/No): Yes, Carbide, Bright
- Item Features
- Standards
- Close diameter tolerances
- Very good surface quality of hole
- Observe coolant pressure
DIN 6535-HA|PROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
