Sandvik

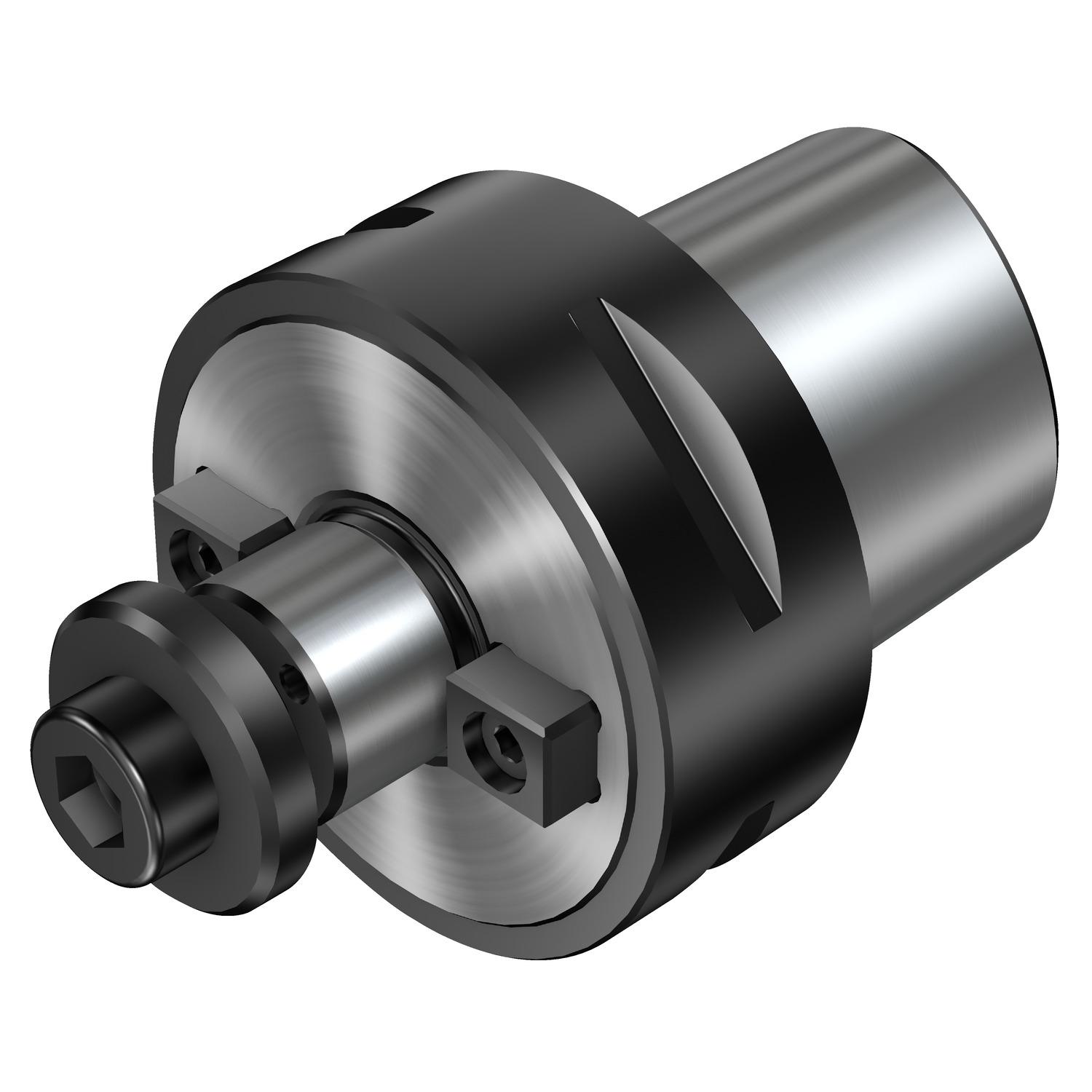

Sandvik Coromant 7549813 Adapter, 22 mm Dia Hole, Coromant® Capto® x Arbor Shank, C4 Taper, 2.165 in Projection
7323223649072
MFG #: 7549813
$899.23
/ EA
Non-Stock Item
- ANSI Code: C4-391.05C-22 055
- Country of Origin: DE
- Hole Diameter: 22 mm
- ISO Code: C4-391.05C-22 055
- Manufacturer Name: Sandvik Coromant
- Overall Diameter: 1.575 in
- Projection: 2.165 in
- Request For Quote: No
- Shank Connection Size: 1.575 x 0.866 in
- Shank Type: Coromant® Capto® x Arbor
- System Size Machine Side: C4
- Taper Size: C4
Sandvik Coromant Adapter, 22 mm Diameter Hole, Coromant® Capto® x Arbor Shank, C4 Taper, 2.165 in Projection, 1.575 in Overall Diameter, 1.575 x 0.866 in Shank Connection, ANSI Code: C4-391.05C-22 055, ISO Code: C4-391.05C-22 055, System Size Machine Side: C4,
- Includes
5758193 and 5758337 Key, 5758496 and 5758577 Screw, 5763363 Washer and 5763772 Driving Key
