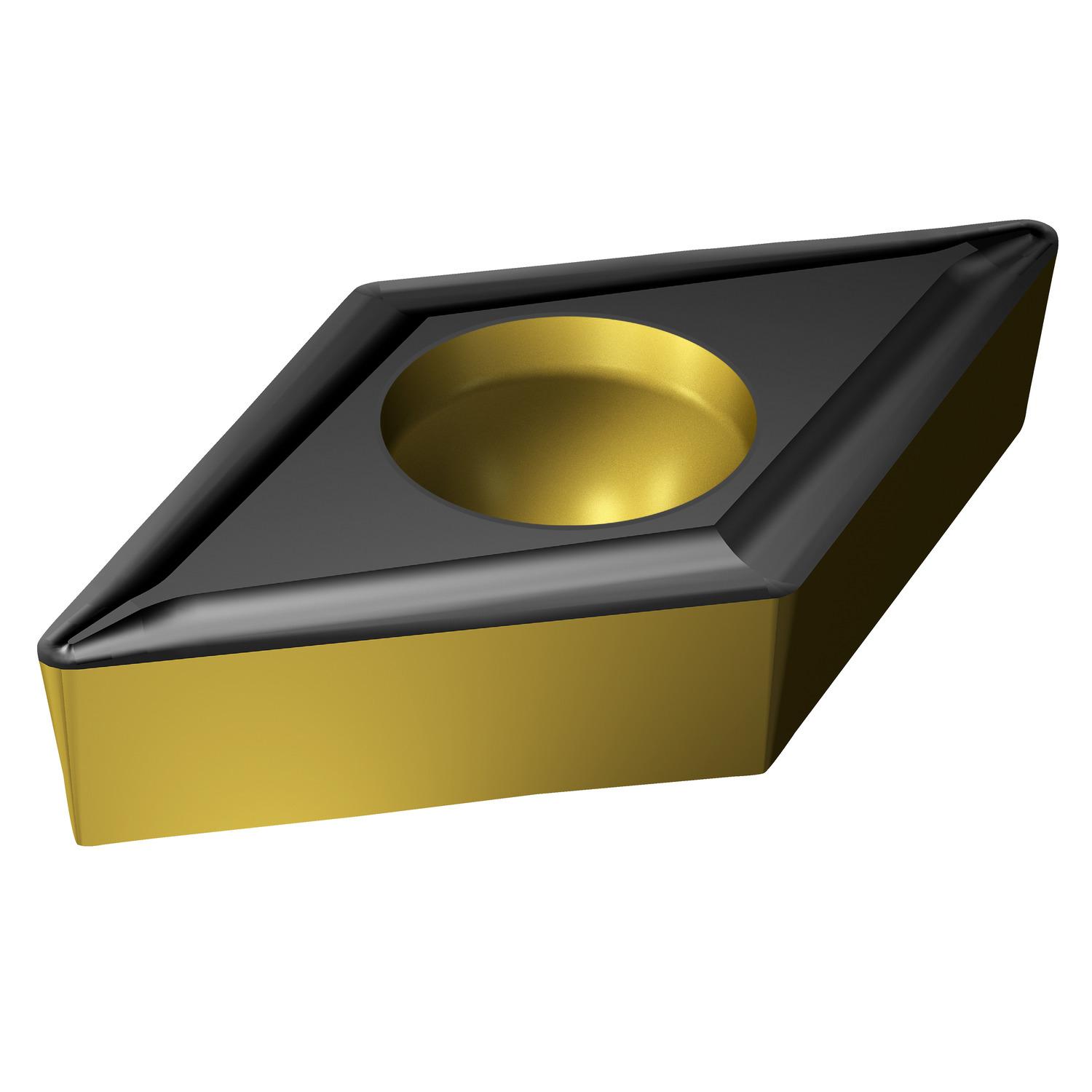

Sandvik Coromant 7859115 CoroTurn® 107 Turning Insert, ANSI Code: DCMT 3(2.5)2-UF 4415, DCMT Insert, 32.52 Insert, Diamond Shape, Left/Right Hand Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturer's Grade: 4415
7323225036566
MFG #: 7859115
Requires Quote
- ANSI Code: DCMT 3(2.5)2-UF 4415
- Chipbreaker: Single-Sided UF
- Corner Radius: 0.031252 in
- Country of Origin: JP
- Cutting Direction: Left/Right Hand
- Finish: CVD-TiCN+Al2O3+TiN Coated
- For Use On: Cast Iron and Steel
- Hole Diameter: 6 to 80 mm
- Included Angle: 55 deg
- Inscribed Circle: 3/8 in
- Insert Size: 32.52
- Insert Style: DCMT
- ISO Code: DCMT 11 T3 08-UF 4415
- Length: 0.426295 in
- Manufacturer Name: Sandvik Coromant
- Manufacturer's Grade: 4415
- Material: Carbide
- Maximum Depth of Cut: 2 mm
- Relief Angle: 7 deg
- Request For Quote: Yes
- Series: CoroTurn® 107
- Shape: Diamond
- Thickness: 5/32 in
Sandvik Coromant Turning Insert, Series: CoroTurn® 107, DCMT Insert, 32.52 Insert, Diamond Shape, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 5/32 in Thickness, 0.426295 in Length, Single-Sided UF Chipbreaker, 0.031252 in Corner Radius, 6 to 80 mm Diameter Hole, Manufacturer's Grade: 4415, ANSI Code: DCMT 3(2.5)2-UF 4415, ISO Code: DCMT 11 T3 08-UF 4415, 55 deg Included Angle, 7 deg Relief Angle, Left/Right Hand Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, For Use On: Cast Iron and Steel,
- Standards
- Item Features
- Application
PROP65: This product contains Carbide chemicals known to the State of CA to cause cancer are present in this product
- Geometries and grades for all application areas
- Insert grades also in advanced cutting materials PCD, CBN and ceramic
- Medium to finishing operation
- 0.2 to 2 mm depth of cut for cast iron and steel
- Two cutting edges
- False wiper edge property
Turning and General Applications
