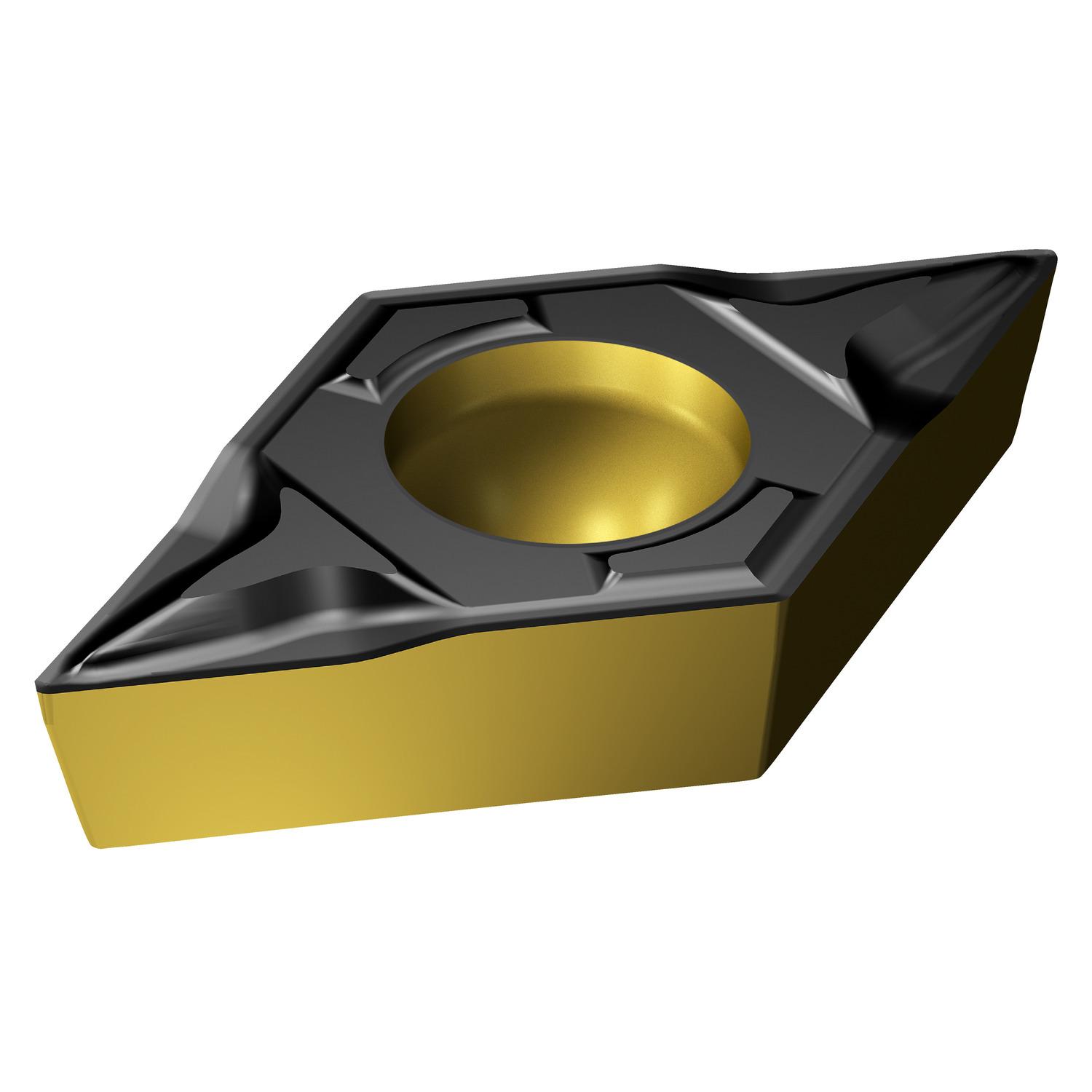

Sandvik Coromant 7861037 CoroTurn® 107 2-Cutting Edge Turning Insert, ANSI Code: DCMT 3(2.5)0-PF 4425, DCMT Insert, Material Grade: P, K, 11T3 Insert, Diamond Shape, Positive Rake, Neutral Cutting, For Use On Steel and Cast Iron, Carbide
7323225049948
MFG #: 7861037
Requires Quote
- ANSI Code: DCMT 3(2.5)0-PF 4425
- Chipbreaker: PF
- Corner Radius: 0.0078 in
- Country of Origin: US
- Cutting Direction: Neutral
- Finish: CVD-TiCN+Al2O3+TiN Coated
- For Use On: Steel and Cast Iron
- Included Angle: 55 deg
- Inscribed Circle: 3/8 in
- Insert Size: 11T3
- Insert Style: DCMT
- ISO Code: DCMT 11 T3 02-PF 4425
- Manufacturer Name: Sandvik Coromant
- Manufacturer's Grade: 4425
- Material: Carbide
- Material Grade: P, K
- Rake: Positive
- Relief Angle: 7 deg
- Request For Quote: Yes
- Series: CoroTurn® 107
- Shape: Diamond
- Thickness: 5/32 in
- Type: 2-Cutting Edge
Sandvik Coromant Turning Insert, 2-Cutting Edge, Series: CoroTurn® 107, DCMT Insert, 11T3 Insert, Diamond Shape, 3/8 in Inscribed Circle, 5/32 in Thickness, Positive Rake, PF Chipbreaker, 0.0078 in Corner Radius, Manufacturer's Grade: 4425, ANSI Code: DCMT 3(2.5)0-PF 4425, ISO Code: DCMT 11 T3 02-PF 4425, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, K, For Use On: Steel and Cast Iron,
- Application
- Item Features
For internal and external turning of slender components and finishing applications
- Low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, extremely sharp insert offer for exceptional surface finish
- Holders with conventional and precision coolant design
- Geometries and grades for all application areas
- Insert grades also in advanced cutting materials PCD, CBN and ceramic
- Wiper geometries available for high feeds and excellent surface finish
