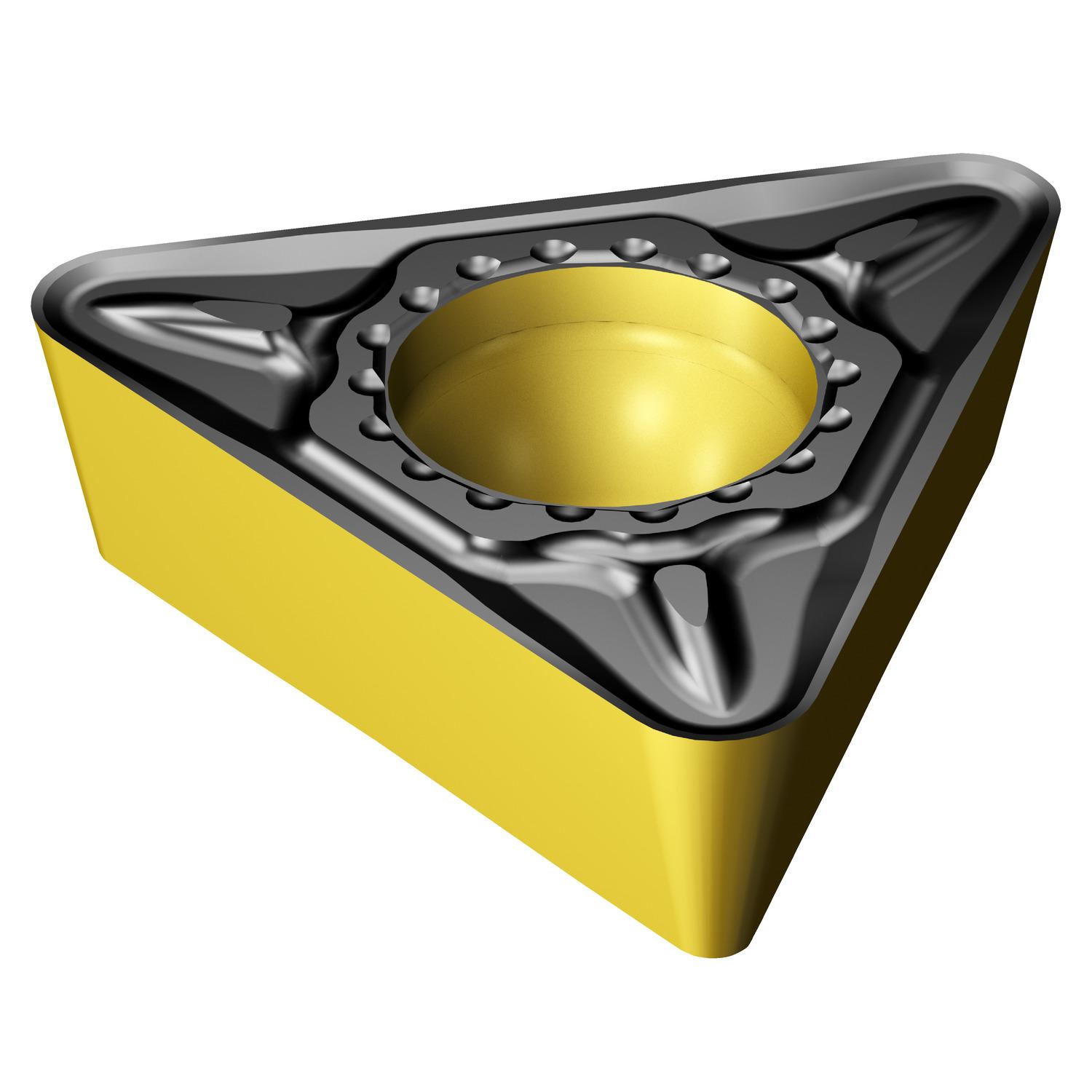

Sandvik Coromant 8019511 CoroTurn® 111 3-Cutting Edge Turning Insert, ANSI Code: TPMT 3(2.5)2-PM 4425, TPMT Insert, Material Grade: K, P, 16T3 Insert, Triangle Shape, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturer's Grade: 4425
7323225784009
MFG #: 8019511
Requires Quote
- ANSI Code: TPMT 3(2.5)2-PM 4425
- Chipbreaker: PM
- Corner Radius: 0.0312 in
- Country of Origin: SE
- Cutting Direction: Neutral
- Finish: CVD-TiCN+Al2O3+TiN Coated
- For Use On: Cast Iron and Steel
- Included Angle: 60 deg
- Inscribed Circle: 3/8 in
- Insert Size: 16T3
- Insert Style: TPMT
- ISO Code: TPMT 16 T3 08-PM 4425
- Length: 0.618 in
- Manufacturer Name: Sandvik Coromant
- Manufacturer's Grade: 4425
- Material: Carbide
- Material Grade: K, P
- Relief Angle: 11 deg
- Request For Quote: Yes
- Series: CoroTurn® 111
- Shape: Triangle
- Thickness: 5/32 in
- Type: 3-Cutting Edge
CoroTurn® 111 is a versatile system with inserts geometries and grades for all materials. It is a real problem solver when you want to avoid vibrations at long overhangs and unstable conditions.
- Application
- Item Features
- Standards
For machining of steel, stainless steel, cast iron, heat-resistant super alloys, titanium, hardened materials, aluminum, non-ferrous material, finishing and medium roughing
- Secure insert clamping
- Excellent repeatability
- Free chip flow
- Low cutting forces
- Excellent edge strength
- Positive insert shape
- Screw clamping ensures stability and unobstructed chip flow
- Tools with high pressure coolant
- Insert geometries and grades for all materials
