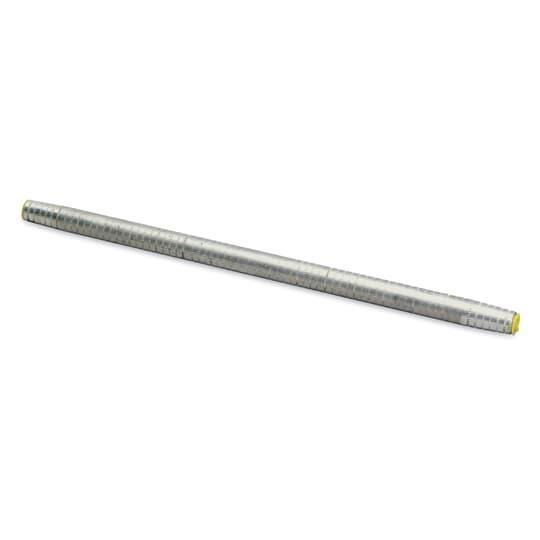

Blackburn® RC20 Full Tension Distribution Compression Splice, 2/0 AWG AAAC/AAC/ACSR Conductor, Die Code: 781 Mechanical, B74AH, 659, 3/4 Hydraulic, 16 in L, Aluminum

RC20 MFG #: RC20
Requires Quote
Non-Stock Item
Blackburn® RC20 Full Tension Distribution Compression Splice, 2/0 AWG AAAC/AAC/ACSR Conductor, Die Code: 781 Mechanical, B74AH, 659, 3/4 Hydraulic, 16 in L, Aluminum
  • Conductor Size: 2/0 AWG
  • Conductor Type: AAAC/AAC/ACSR
  • Connector Type: Compression
  • Country of Origin: MX
  • Die Code: 781 Mechanical, B74AH, 659, 3/4 Hydraulic
  • Length: 16 in
  • Manufacturer Name: ABB
  • Material: Aluminum
  • Request For Quote: Yes
  • Series: RC Series
  • Specifications: 2-Conductor
  • Type: Full Tension
Blackburn® Distribution Compression Splice, Full Tension, Series: RC Series, AAAC/AAC/ACSR Conductor, 2/0 AWG Conductor, Die Code: 781 Mechanical, B74AH, 659, 3/4 Hydraulic, 16 in Length, Compression Connector, 2-Conductor, Aluminum
QTY
Add to List
  • Application
  • Standards
  • Item Features
For distribution compression connector
CSA Approved
  • Center stop assures proper conductor positioning
  • External end taper provides conductor stress relief, ease of stringing and corona protection
  • Internal end chamfer allows easy conductor insertion and prevents sharp edge contact with conductor
  • Replaces 2-piece splices
  • Tested to meet electrical and mechanical requirements of ANSI C119.4, will withstand 95% of conductor rated breaking strength
  • 2/0 (6/1) AWG ACSR, 2/0 (7) AWG AAAC, 2/0 (7) AWG 5005 and 2/0 (7) AWG AAC conductor
