Guhring

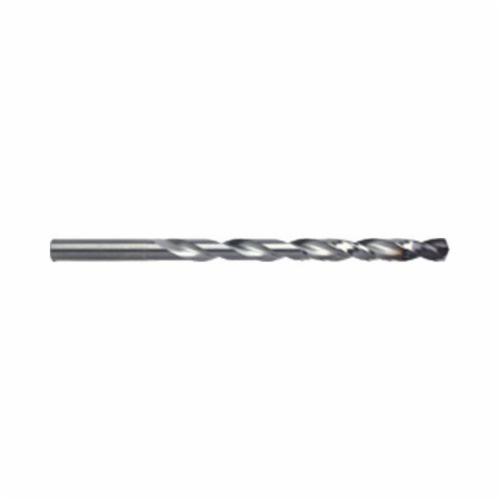

Guhring 9055250047600 RT100C/5525 High Penetration Double Margin Drill With Coolant Through, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, Straight Shank, 12XD D Cutting, 2 Flutes
5525004.76
MFG #: 9055250047600
$420.63
/ EA
Non-Stock Item
- Applicable Materials: Cast Iron, General Steel, Brass, Hardened Materials, Stainless Steel, Universal Steel, Titanium and Nickel Alloy
- Country of Origin: DE
- Cutting Depth: 12XD
- Cutting Direction: Right Hand
- Cutting Edge Material: Carbide
- Drill Size - Decimal Inch: 0.1875 in
- Drill Size - Fraction: 3/16 in
- Finish: Nano-FIREX® Coated
- Flute Length: 64 mm
- Flute Type: Right Spiral
- Manufacturer Name: Guhring
- Material: Carbide
- Number of Flutes: 2
- Overall Length: 102 mm
- Point Angle: 135 deg
- Point Type: Self-Centering
- Request For Quote: No
- Series: RT100C/5525
- Shank Size: 6 mm
- Shank Type: Straight
- Type: High Penetration
Guhring Double Margin Drill, High Penetration, Series: 888-X-RL, 3/16 in Drill Size - Fraction, 0.1875 in Drill Size - Decimal Inch, 102 mm Overall Length, 12XD Cutting Depth, 2 Flutes, Right Spiral Flute, 64 mm Flute Length, 6 mm Shank, Straight Shank, 135 deg Point, Self-Centering Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, nano-FIREX® Coated, Applicable Materials: Cast Iron, General Steel, Brass, Hardened Materials, Stainless Steel, Universal Steel, Titanium and Nickel Alloy
- Item Features
- Application
- Standards
- Unique flute profile and point geometry eliminates the need for peck cycles
- Self-centering 140 deg SC point eliminates need for spot drilling
- Dual helical coolant ducts through the tool
- Nano-FIREX® coated tip for added heat and abrasion resistance
- Optimized cutting edge geometry
- Special web thinning
- Special point grind
- Straight shank without flat
- Short chips
- Alignment accurate holes
- Powerful machines
For hydraulic chucks
PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
