Sandvik

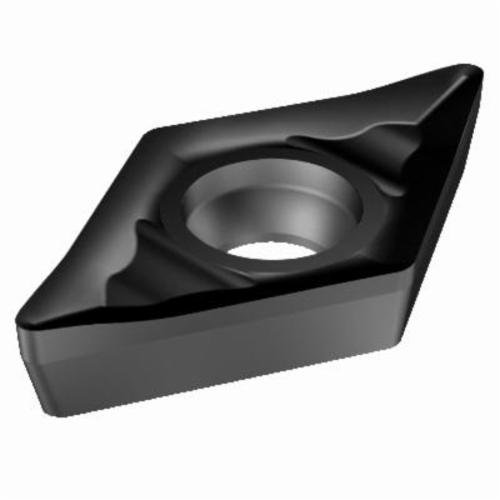

Sandvik Coromant 6075404 CoroTurn® 107 Turning Insert, ANSI Code: DCGX 3(2.5)2-AL 1105, DCGX Insert, Material Grade: M, S, 3(2.5)2 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 1105
26075404
MFG #: 6075404
$39.34
/ PK
Non-Stock Item
- ANSI Code: DCGX 3(2.5)2-AL 1105
- Chipbreaker: AL
- Corner Radius: 0.031 in
- Country of Origin: JP
- Cutting Direction: Neutral
- Finish: PVD-TiAlN2 Coated
- For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium
- Hole Diameter: 0.1732 in
- Included Angle: 55 deg
- Inscribed Circle: 3/8 in
- Insert Size: 3(2.5)2
- Insert Style: DCGX
- ISO Code: DCGX 11 T3 08-AL 1105
- Manufacturer Name: Sandvik Coromant
- Manufacturer's Grade: 1105
- Material: Carbide
- Material Grade: M, S
- Maximum Depth of Cut: 5.5 mm
- Rake: Positive
- Relief Angle: 7 deg
- Request For Quote: No
- Seat Size: 11
- Series: CoroTurn® 107
- Shape: Diamond
- Thickness: 0.1562 in
Sandvik Coromant Turning Insert, Series: CoroTurn® 107, DCGX Insert, 3(2.5)2 Insert, Diamond, 5.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 11 Seat, Positive Rake, AL Chipbreaker, 0.031 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: DCGX 3(2.5)2-AL 1105, ISO Code: DCGX 11 T3 08-AL 1105, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN2 Coated, Material Grade: M, S, For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium,
- Item Features
- Application
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
Medium Applications
