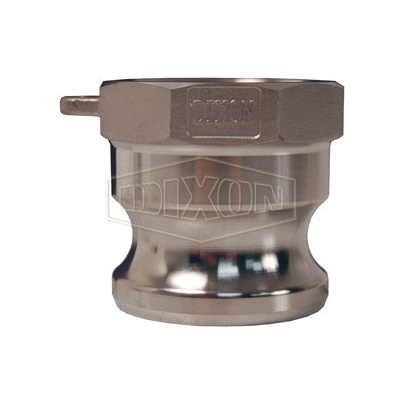

Dixon® G150-A-SS Type A Cam and Groove Adapter, 1-1/2 in, Male Adapter x FNPT, 316 Stainless Steel, Import

H150AS MFG #: G150-A-SS
$38.27 / EA
Non-Stock Item
Dixon® G150-A-SS Type A Cam and Groove Adapter, 1-1/2 in, Male Adapter x FNPT, 316 Stainless Steel, Import
  • CustomerPartNumber: 100141, 100715, 100985, 101067, 101079, 126272, 126704, 153379
  • Manufacturer: Dixon Valve & Coupling
  • Request For Quote: No
  • Type: Type A
  • Fitting/Connector Type: Adapter
  • Nominal Size: 1-1/2
  • End Style: Male Adapter x FNPT
  • Length: 2-3/16
  • Pressure Rating: 250
  • Material: 316 Stainless Steel
  • Domestic/Import: Import
  • Brand: Dixon®
Dixon® Cam and Groove Adapter, Type A, Fitting/Connector Type: Adapter, 1-1/2 in Nominal Size, Male Adapter x FNPT, 2-3/16 in Length, 250 psi, 316 Stainless Steel, Import
QTY
Add to List
  • Interchange with all products produced to A-A-59326D
  • Made to Dixon specifications and branded Dixon
  • Buna seals are standard
  • Pressure rating for adapters is based on the seal of the mating part
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature
  • 250 psi at ambient temperature 70 deg F pressure
  • Warning: this product contains a chemical known to the state of California to cause birth defects or
  • Do not use in connection with drinking water
  • Wash hands after handling
Interchange with all products produced to A-A-59326D
Made to Dixon specifications and branded Dixon
Buna seals are standard
Pressure rating for adapters is based on the seal of the mating part
Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Pressure rating is based on the seal of the mating part
Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
250 psi at ambient temperature 70 deg F pressure
Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
Do not use in connection with drinking water
Wash hands after handling
