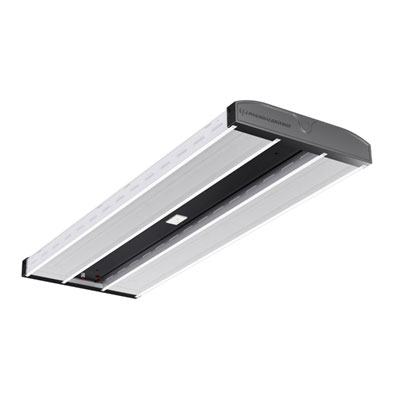

Lithonia Lighting® I-BEAM® IBL 24L WD LP740 DLC Wide Distribution High Bay Lighting,) Static LED Lamp, 120 to 277 VAC, Gloss/White/Textured Dark Gray Housing

213VRU MFG #: IBL 24L WD LP740 DLC
$446.82 / EA
Non-Stock Item
Lithonia Lighting® I-BEAM® IBL 24L WD LP740 DLC Wide Distribution High Bay Lighting,) Static LED Lamp, 120 to 277 VAC, Gloss/White/Textured Dark Gray Housing
  • Request For Quote: No
Lithonia Lighting® I-BEAM® High Bay Lighting, Wide Distribution, Series: IBL, 120 to 277 VAC, Static LED Lamp, 197 to 192 W Lamp, 100000 hr Average Life, 4000 K Color Temperature, 70 CRI, 24000 Lumens, Pendant/Suspended Mounting, Aluminum/Steel Housing Material, Gloss/White/Textured Dark Gray Housing Finish, 45 in L x 15-3/4 in W x 3-1/4 in D Dimensions
QTY
Add to List
  • Ideal one for one replacement of conventional high bay systems such as HID and fluorescent
  • Suitable for suspension by chain, cable, surface mounting bracket, hook monopoint or single (pendant
  • Surface mounting is not recommended without optional surface mounting bracket
  • To maintain high ambient listing, fixture should be mounted at a minimum plenum height of 24 in
  • Option provides superior lighting management capabilities including granular control that can light
  • Wireless controls technology creates a mesh network that communicates between fixtures, sensors and
  • 131 deg F ambient temperature range
  • 90 deg horizontal, 2.5 deg vertical
  • Gloss white with textured dark gray accents finish
  • Damp location listed
  • Not for use with 48L or 60L
  • L95 at 60000 hr (only 5% loss) with a predicted life of more than 100000 hr
  • Utilizes a 90 deg C case temperature range driver for maximum life at high temperature ranges
  • 0.9 power factor and 10 kA/10 kV level of surge protection is standard
  • 0 to 10 VDC dimming standard for a dimming range of 100 to 10%, dimming source current is 150 mA
  • Certain airborne contaminants can diminish integrity of acrylic and polycarbonate
  • Design lights consortium qualified
Ideal one for one replacement of conventional high bay systems such as HID and fluorescent
Suitable for suspension by chain, cable, surface mounting bracket, hook monopoint or single (pendant) monopoint installation
Surface mounting is not recommended without optional surface mounting bracket
To maintain high ambient listing, fixture should be mounted at a minimum plenum height of 24 in
Option provides superior lighting management capabilities including granular control that can light zones differently depending on the time of day, season and special event
Wireless controls technology creates a mesh network that communicates between fixtures, sensors and wall stations facility wide
131 deg F ambient temperature range
90 deg horizontal, 2.5 deg vertical
Gloss white with textured dark gray accents finish
Damp location listed
Not for use with 48L or 60L
L95 at 60000 hr (only 5% loss) with a predicted life of more than 100000 hr
Utilizes a 90 deg C case temperature range driver for maximum life at high temperature ranges
0.9 power factor and 10 kA/10 kV level of surge protection is standard
0 to 10 VDC dimming standard for a dimming range of 100 to 10%, dimming source current is 150 mA
Certain airborne contaminants can diminish integrity of acrylic and polycarbonate
Design lights consortium qualified
