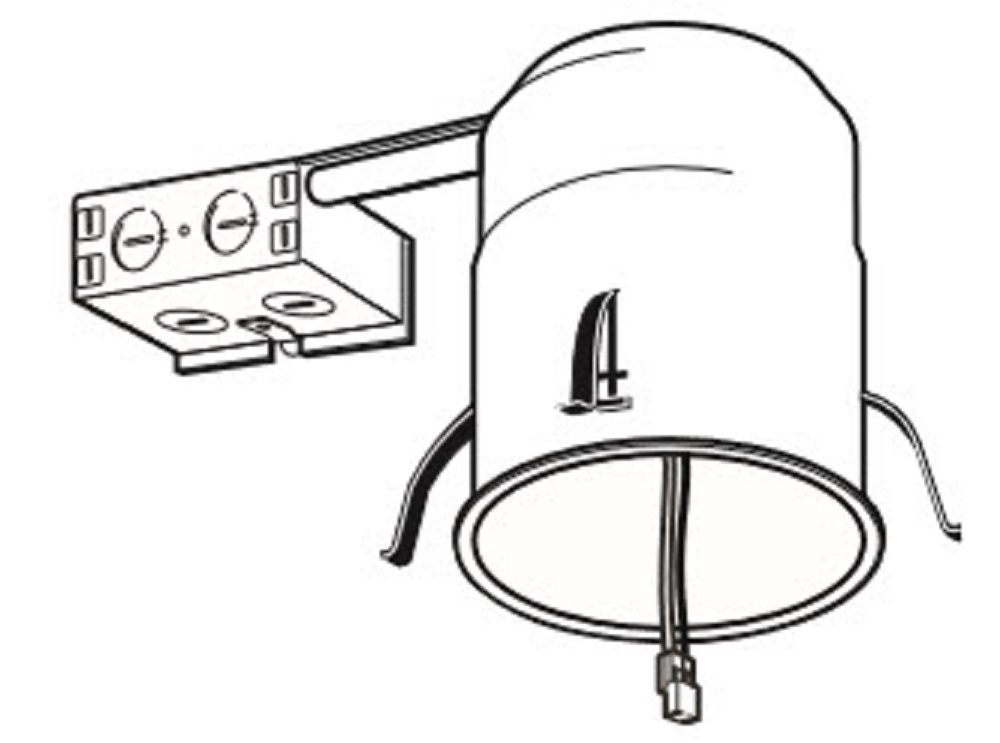

Lithonia Lighting® L3RLED T24 R6 Round Downlight Housing, LED Lamp, 120 VAC, 4 in Ceiling Opening, Aluminum Housing
221TJN
MFG #: L3RLED T24 R6
$14.44
/ EA
Non-Stock Item
- Request For Quote: No
Lithonia Lighting® Downlight Housing, Round, Series: L3, 120 VAC, 4 in Ceiling Opening, LED Lamp, Recessed/Wood Joist/T-Bar Mount, For Use With: P Series Open and Baffle Wide Flange LED Module/LED Gimbal Modules, 4 in Dia, 17.375 in Height, 8.125 in Width, 13-1/4 in D, Aluminum Housing, Gray
- 100 CRI, 1100 lumens and 3000 K color temperature
- Round shape
- Direct (95 to 100% down) light distribution
- Airtight standard and tested to meet current energy codes
- Aluminum housing with galvanized steel pan
- Galvanized bar hangers span up to 24 in OC and feature stepped shank nail and positioning guide with
- Two locking screws hold fixture in position
- Galvanized steel junction box (4) built-in Romex® clamps
- (4) 1/2 in and (2) 3/4 in knockouts with slots for pryout, rated for through branch wiring
- Removable J-box doors for easy access
- Durable medium base porcelain socket with nickel plated copper alloy screw shell and contact
- Socket clips to top of housing to prevent paint overspray in socket screw shell
- Socket attaches to reflector to ensure proper and consistent lamp position
- Thermal protection provided against improper lamp usage
- Airtight housing suitable for airtight installations
- Expandable bar hangers allow for off center mounting in wood joist or T-bar ceilings
- Vertical adjustment of housing allows for flush mounting with ceiling face
100 CRI, 1100 lumens and 3000 K color temperature
Round shape
Direct (95 to 100% down) light distribution
Airtight standard and tested to meet current energy codes
Aluminum housing with galvanized steel pan
Galvanized bar hangers span up to 24 in OC and feature stepped shank nail and positioning guide with integral T-bar locks
Two locking screws hold fixture in position
Galvanized steel junction box (4) built-in Romex® clamps
(4) 1/2 in and (2) 3/4 in knockouts with slots for pryout, rated for through branch wiring
Removable J-box doors for easy access
Durable medium base porcelain socket with nickel plated copper alloy screw shell and contact
Socket clips to top of housing to prevent paint overspray in socket screw shell
Socket attaches to reflector to ensure proper and consistent lamp position
Thermal protection provided against improper lamp usage
Airtight housing suitable for airtight installations
Expandable bar hangers allow for off center mounting in wood joist or T-bar ceilings
Vertical adjustment of housing allows for flush mounting with ceiling face
