SASCO S943BC-EG Beam Clamp, 3/4 in THK Flange, 1000 lb Load, Steel, Electro-Plated Zinc
S943DCEG
MFG #: S943BC-EG
Requires Quote

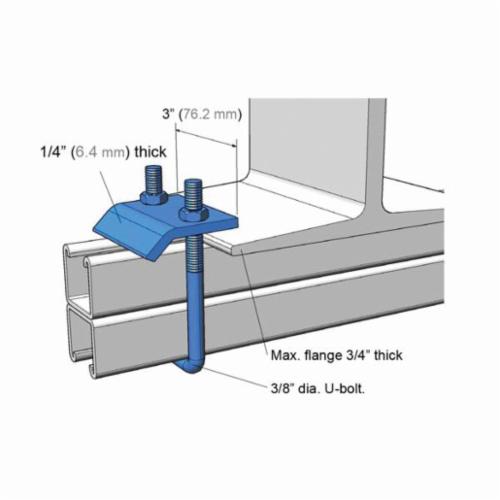

SASCO Beam Clamp, 3/4 in Flange Thickness, 1000 lb, For Use With: 2-7/16 to 3-1/4 in Strut Channel, ASTM B633 Type III, Steel, Electro-Plated Zinc, 3 in L
- Sasco fittings are manufactured from hot rolled pickled and oiled steel
- Must be used in pairs
- All holes for attachments are 9/16 in (14.3 mm) diameter
- 1/4 in thick beam clamp
- Design load is for a single beam clamp when used in pairs
- 3/8 in diameter U-bolt
- Oiled steel material
Sasco fittings are manufactured from hot rolled pickled and oiled steel
Must be used in pairs
All holes for attachments are 9/16 in (14.3 mm) diameter
1/4 in thick beam clamp
Design load is for a single beam clamp when used in pairs
3/8 in diameter U-bolt
Oiled steel material
