Sta-Kon®

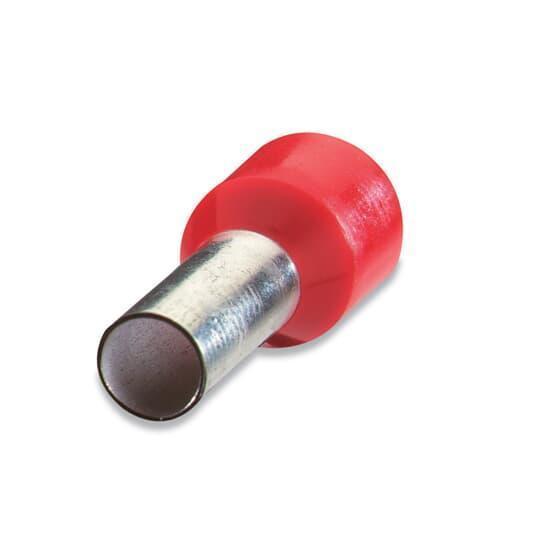

Sta-Kon® F4003 Insulated Wire Ferrule, 16 AWG Copper/Stranded Conductor, 0.571 in L, Copper, Red

F4003 MFG #: F4003
Requires Quote
Non-Stock Item
Sta-Kon® F4003 Insulated Wire Ferrule, 16 AWG Copper/Stranded Conductor, 0.571 in L, Copper, Red
  • Barrel Size: 0.134 in Dia
  • Color: Red
  • Conductor Size: 16 AWG
  • Conductor Type: Copper/Stranded
  • Country of Origin: DE
  • Finish: TiN Coated
  • Length: 0.571 in
  • Manufacturer Name: ABB
  • Material: Copper
  • Series: F Series
  • Specifications: 0.071 in ID x 0.315 in L x 0.006 in THK Pin, 0.134 in Dia Base, Polypropylene Insulation
  • Temperature Rating: 105 deg C
  • Type: Insulated
  • Voltage Rating: 300 VAC
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.
QTY
Add to List
  • Standards
  • Item Features
DIN 46228 Part 4|UL E489056
  • Polypropylene insulated
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
  • Recommended tool T1, T3 and ERG4
