Dodge®

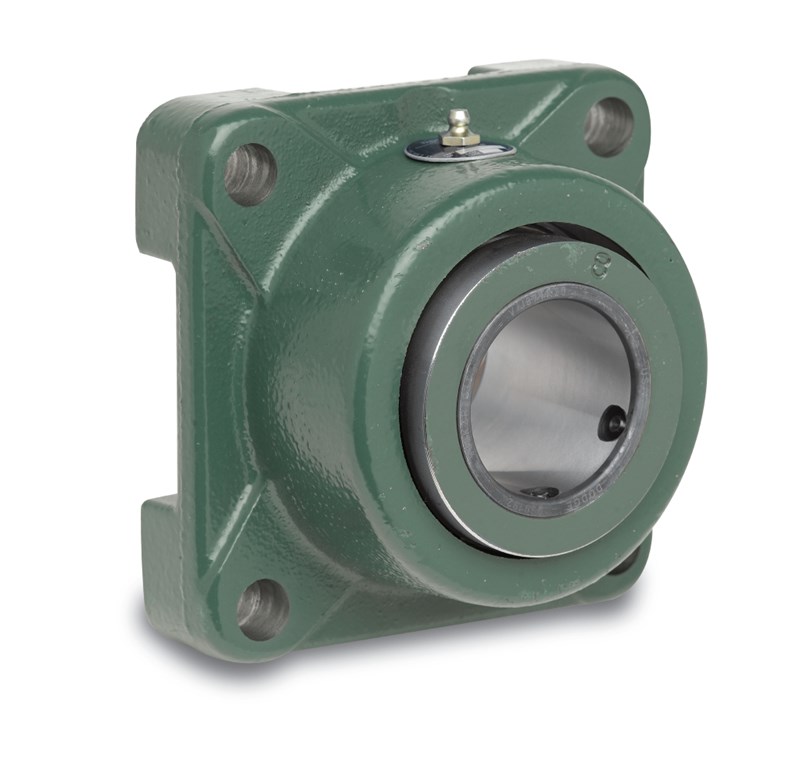

Dodge® 023103 115 Non-Expansion Type E-Xtra Triple Lip Flange Mount Roller Bearing Unit, 2 in Dia Bore, 4.38 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 5.63 in OAL/Dia

023103 MFG #: 023103
$535.91 / EA
Non-Stock Item
Dodge® 023103 115 Non-Expansion Type E-Xtra Triple Lip Flange Mount Roller Bearing Unit, 2 in Dia Bore, 4.38 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 5.63 in OAL/Dia
  • Bearing Material: Cast Iron
  • Bolt Center-to-Center Length: 4.38 in
  • Bore Diameter: 2 in
  • Country of Origin: US
  • Finish: Uncoated
  • Flange Mounting Type: 4-Bolt Base
  • Load Capacity: 9300 lb Dynamic/43000 lb Static
  • Locking Device: 65 deg Set Screw
  • Manufacturer Name: Dodge Industrial
  • Maximum Speed: 3050 rpm
  • Overall Depth: 3.76 in
  • Overall Height: 5.63 in
  • Overall Length/Diameter: 5.63 in
  • Series: 115
  • Temperature Rating: -100 to 200 deg F
  • Type: Non-Expansion Type E-Xtra Triple Lip
Dodge® Flange Mount Roller Bearing Unit, Non-Expansion Type E-Xtra Triple Lip, Series: 115, 2 in Bore, 4.38 in Bolt Center-to-Center Length, 4-Bolt Base Flange Mounting, 5.63 in Overall Length/Diameter, 3.76 in Overall Depth, 5.63 in Overall Height, 65 deg Set Screw Locking Device, Cast Iron Bearing, 9300 lb Dynamic/43000 lb Static Load, 3050 rpm Maximum, -100 to 200 deg F, Uncoated
QTY
Add to List
  • Application
  • Item Features
For dusty or damp environments in industries such as mining, aggregate and cement
  • New XTS seal provides added protection against contamination
  • Completely assembled, factory adjusted and properly lubricated shaft
  • Stocked in all configurations
