Dodge®

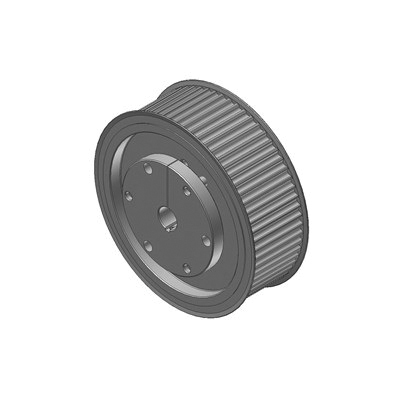

P48-14M-170-E Dodge® 110884 Flanged Solid Type A Belt Sprocket, 7/8 to 3-1/2 in QD® Bore, 8.311 in OD, 8.421 in Dia Pitch, 7.38 in W Face

110884-DOD MFG #: 110884
Requires Quote
P48-14M-170-E Dodge® 110884 Flanged Solid Type A Belt Sprocket, 7/8 to 3-1/2 in QD® Bore, 8.311 in OD, 8.421 in Dia Pitch, 7.38 in W Face
  • Bore Diameter: 7/8 to 3-1/2 in
  • Bore Type: QD®
  • Bushing Type: E
  • Country of Origin: US
  • Face Width: 7.38 in
  • Flange Diameter: 8.941 in
  • Manufacturer Name: Dodge Industrial
  • Outside Diameter: 8.311 in
  • Overall Length: 7.38 in
  • Pitch: 14 mm
  • Pitch Diameter: 8.421 in
  • Request For Quote: Yes
  • Suitable For Use With: 170 mm W Type HTD Belt
  • Type: Flanged Solid Type A
Dodge® Belt Sprocket, Flanged Solid Type A, QD® Bore, 7/8 to 3-1/2 in Bore Dia, 8.311 in Outside Dia, 8.421 in, 14 mm Pitch, 7.38 in Face Width, 8.941 in Flange Dia, E Bushing, 7.38 in Overall Length, For Use With: 170 mm W Type HTD Belt
QTY
Add to List
  • Item Features
  • Standards
  • Rated for capacity of standard HTD belts
  • Can run HT200 belts at HTD rating
  • Use HT200 belts for quieter operation than with HTD belts
AGMA/MPTA/AFBMA/ASAMMA/BSA/PTDA/CMA Standards|ISO 9002|UL Listed
