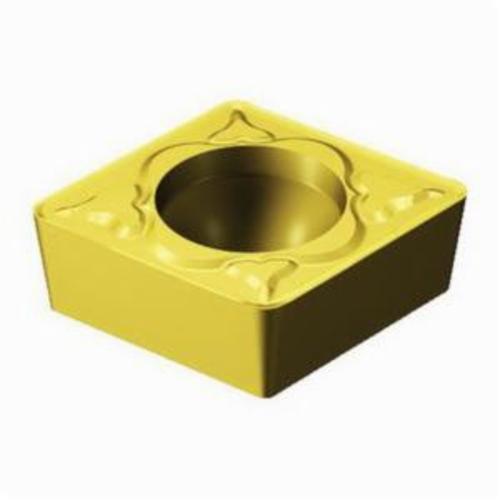

Sandvik Coromant 5724017 CoroTurn® 107 Turning Insert, ANSI Code: CCMT 2(1.5)1-MM 1025, CCMT Insert, Material Grade: M, S, 2(1.5)1 Insert, Diamond Shape, 06 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 1025

11146671 MFG #: 5724017
$15.40 / EA
Non-Stock Item
Sandvik Coromant 5724017 CoroTurn® 107 Turning Insert, ANSI Code: CCMT 2(1.5)1-MM 1025, CCMT Insert, Material Grade: M, S, 2(1.5)1 Insert, Diamond Shape, 06 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 1025
  • Manufacturer: Sandvik Coromant
  • Series: CoroTurn® 107
  • Insert Style: CCMT
  • Insert Size: 2(1.5)1
  • Shape: Diamond
  • Maximum Depth of Cut: 2.4
  • Inscribed Circle: 1/4
  • Thickness: 0.0937
  • Seat Size: 06
  • Rake: Positive
  • Chipbreaker: MM
  • Corner Radius: 0.0156
  • Hole Diameter: 0.1102
  • Manufacturer's Grade: 1025
  • ANSI Code: CCMT 2(1.5)1-MM 1025
  • ISO Code: CCMT 06 02 04-MM 1025
  • Included Angle: 80
  • Relief Angle: 7
  • Cutting Direction: Neutral
  • Material: Carbide
  • Finish: PVD-TiAlN+TiN Coated
  • Material Grade: M, S
  • For Use On: Stainless Steel and Heat Resistant Super Alloys and Titanium
  • Brand: Sandvik Coromant
Sandvik Coromant Turning Insert, Series: CoroTurn® 107, CCMT Insert, 2(1.5)1 Insert, Diamond, 2.4 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 06 Seat, Positive Rake, MM Chipbreaker, 0.0156 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: CCMT 2(1.5)1-MM 1025, ISO Code: CCMT 06 02 04-MM 1025, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, S, For Use On: Stainless Steel and Heat Resistant Super Alloys and Titanium
QTY
Add to List
  • When turning internally or machining slender components, you can rely on the super sharp cutting edg
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high qua
  • Ground, super sharp insert offer for exceptional surface finish
  • Wiper geometries available for high feeds and high quality surface finish
When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Wiper geometries available for high feeds and high quality surface finish
