Guhring

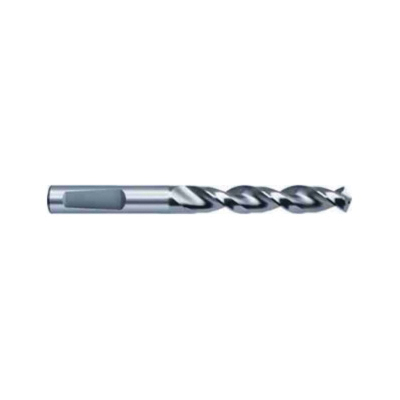

Guhring 9011310085000 1131 Type GT 80 IK Jobber Length Drill, 8.5 mm Drill - Metric, 0.3346 in Drill - Decimal Inch, 130 deg Point, HSCO, Bright

1131008.5 MFG #: 9011310085000
$276.85 / EA
Non-Stock Item
Guhring 9011310085000 1131 Type GT 80 IK Jobber Length Drill, 8.5 mm Drill - Metric, 0.3346 in Drill - Decimal Inch, 130 deg Point, HSCO, Bright
  • Applicable Materials: Steel, Stainless Steel, Gray Cast Iron, Malleable, Spheroidal Iron, Aluminum, Other Non-Ferrous Metals, Special, Super, Titanium Alloys, Hardened Steel and Chilled Cast Iron
  • Country of Origin: DE
  • Cutting Depth: 48.25 mm
  • Cutting Direction: Right Hand
  • Cutting Edge Material: HSCO
  • Drill Diameter Measurement System: Metric
  • Drill Size - Decimal Inch: 0.3346 in
  • Drill Size - Metric: 8.5 mm
  • Finish: Bright
  • Flute Length: 61 mm
  • Flute Type: Parabolic
  • Manufacturer Name: Guhring
  • Material: HSCO
  • Number of Flutes: 2
  • Overall Length: 103 mm
  • Point Angle: 130 deg
  • Point Type: Cone Relief
  • Request For Quote: No
  • Series: 1131
  • Shank Size: 10 mm
  • Shank Type: Whistle Notch
  • Through Coolant (Yes/No): Yes
  • Type: Type GT 80 IK
Guhring Jobber Length Drill, Type GT 80 IK, Series: 1131, Metric Drill Diameter Measurement System, 8.5 mm Drill Size - Metric, 0.3346 in Drill Size - Decimal Inch, 103 mm Overall Length, 48.25 mm Cutting Depth, 2 Flutes, Parabolic Flute, 61 mm Flute Length, 10 mm Shank, Whistle Notch Shank, 130 deg Point, Cone Relief Point, Right Hand Cutting Direction, HSCO Cutting Edge, Through Coolant (Yes/No): Yes, HSCO, Bright, Applicable Materials: Steel, Stainless Steel, Gray Cast Iron, Malleable, Spheroidal Iron, Aluminum, Other Non-Ferrous Metals, Special, Super, Titanium Alloys, Hardened Steel and Chilled Cast Iron
QTY
Add to List
  • Standards
PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
