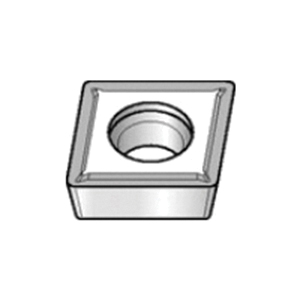

Kennametal® 1870329 Turning Insert, ANSI Code: CPMT3251LF KT315, CPMT Insert, Material Grade: C3/C7, 09T304 Insert, Rhomboid Shape, 5 deg Positive Rake, For Use On Cast Iron, Steel and Stainless Steel, Cermet, Manufacturer's Grade: KT315

Kennametal® Turning Insert, CPMT Insert, 09T304 Insert, Rhomboid, 1.25 mm Maximum Depth of Cut, 9.53 mm Inscribed Circle, 3.97 mm Thickness, 9.67 mm Length, 5 deg Positive Rake, LF Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturer's Grade: KT315, ANSI Code: CPMT3251LF KT315, ISO Code: CPMT09T304LF KT315, 80 deg Included Angle, 11 deg Relief Angle, Cermet, PVD-TiN+TiCN Coated, Material Grade: C3/C7, For Use On: Cast Iron, Steel and Stainless Steel
