Guhring

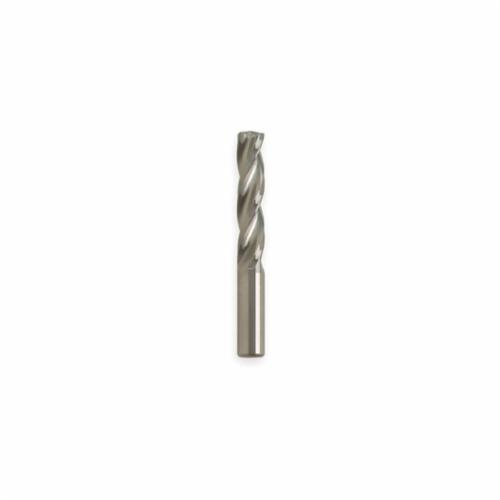

Guhring 9014520085000 GS200U/1452 High Precision Jobber Length Drill Bit, 8.5 mm Drill - Metric, 0.3346 in Drill - Decimal Inch, 150 deg Point, Carbide, Bright
1452008.5
MFG #: 9014520085000
$163.95
/ EA
Non-Stock Item
- Applicable Materials: Aluminum, Brass, Cast Iron and Free Cutting Steels
- Country of Origin: DE
- Cutting Depth: 5XD
- Cutting Direction: Right Hand
- Cutting Edge Material: Carbide
- Drill Diameter Measurement System: Metric/Imperial
- Drill Size - Decimal Inch: 0.3346 in
- Drill Size - Metric: 8.5 mm
- Finish: Bright
- Flute Length: 48 mm
- Flute Type: Right Spiral
- Manufacturer Name: Guhring
- Material: Carbide
- Number of Flutes: 3
- Overall Length: 79 mm
- Point Angle: 150 deg
- Point Type: Self-Centering
- Request For Quote: No
- Series: GS200U/1452
- Shank Size: 8.5 mm
- Shank Type: Straight
- Through Coolant (Yes/No): No
- Type: High Precision
Guhring Jobber Length Drill Bit, High Precision, Series: GS200U/1452, Metric/Imperial, 8.5 mm Drill - Metric, 0.3346 in Drill - Decimal Inch, 79 mm Overall Length, 5XD Cutting Depth, 3 Flutes, Right Spiral Flute, 48 mm Flute Length, 8.5 mm Shank, Straight Shank, 150 deg Point, Self-Centering Point, Right Hand Cutting Direction, Carbide Cutting Edge, No Through Coolant, Carbide, Bright, Applicable Materials: Aluminum, Brass, Cast Iron and Free Cutting Steels
- Standards
- Item Features
DIN 6539|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
- Solid carbide provides better rigidity than high speed steel
- It is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic
- Spiral flutes are constructed with a higher flute angle to remove chips more easily
- H7 tolerance on cut/shank diameter
- External coolant
