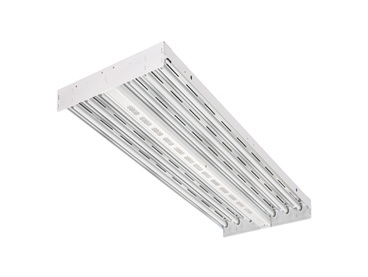

Lithonia Lighting® I-BEAM® IBZT5 4 Contractor Select High Bay Fixture, (4) Fluorescent/T5SHO Lamp, 120/277 VAC, Enamel Painted Housing

200PT6 MFG #: IBZT5 4
$93.55 / EA
Non-Stock Item
Lithonia Lighting® I-BEAM® IBZT5 4 Contractor Select High Bay Fixture, (4) Fluorescent/T5SHO Lamp, 120/277 VAC, Enamel Painted Housing
  • Request For Quote: No
Lithonia Lighting® I-BEAM® High Bay Fixture, Contractor Select, Series: IBZ, 120/277 VAC, Fluorescent/T5SHO Lamp, 54 W Lamp, Medium Bi-Pin Lamp Base, 4 Lamps, White Light, Electronic Ballast, Class P Insulation, Suspended Mounting, Steel Housing Material, Enamel Painted Housing Finish, 48-1/8 in L x 13-1/4 in W x 2-3/8 in H Dimensions
QTY
Add to List
  • Rugged fixture construction coupled with excellent fixture performance
  • Channel is formed of heavy duty code gauge steel to stand up to the most demanding elements
  • Lamp holder assembly protects from incidental damage to reflectors during installation
  • Channel is high gloss white baked enamel, 5-stage iron phosphate pre-treatment ensures superior pain
  • Narrow distribution is ideal for narrow or aisle lighting applications and features precision formed
  • Provides 95% reflectivity and warranted for 25 years
  • Wide distribution includes high reflectance white finish for general or open areas
  • MVOLT 120 to 277 VAC ballast accommodates most electrical requirements
  • Thermally protected, resetting, class P, HPF, A+ sound rated electronic ballast, AWM TFM or THHN wir
  • Sockets include secure positioning rotating collars with enclosed contacts
  • Suitable for suspension by chain, cable or hook monopoint hanger, access plate on the back of channe
  • Narrow distribution
  • T5, program start
Rugged fixture construction coupled with excellent fixture performance
Channel is formed of heavy duty code gauge steel to stand up to the most demanding elements
Lamp holder assembly protects from incidental damage to reflectors during installation
Channel is high gloss white baked enamel, 5-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance
Narrow distribution is ideal for narrow or aisle lighting applications and features precision formed segmented optics utilizing Alanod® Miro® 4 specular aluminum reflectors
Provides 95% reflectivity and warranted for 25 years
Wide distribution includes high reflectance white finish for general or open areas
MVOLT 120 to 277 VAC ballast accommodates most electrical requirements
Thermally protected, resetting, class P, HPF, A+ sound rated electronic ballast, AWM TFM or THHN wire used throughout rated for required temperatures
Sockets include secure positioning rotating collars with enclosed contacts
Suitable for suspension by chain, cable or hook monopoint hanger, access plate on the back of channel housing allows for quick and easy wiring
Narrow distribution
T5, program start
