Timken®

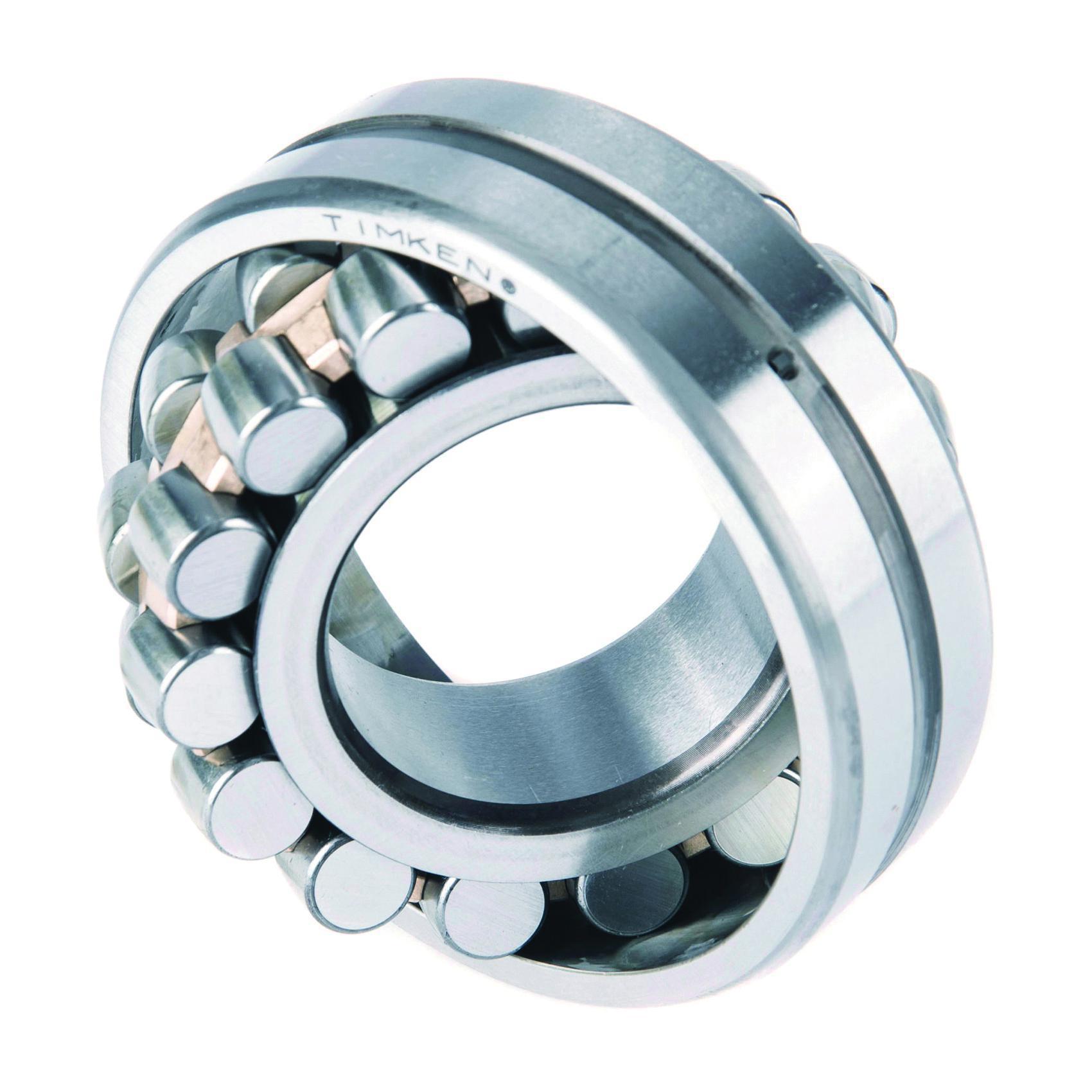

Timken® 22332EMBW33W800C4 223 Cylindrical Bore Type EMB Spherical Roller Bearing, 160 mm Dia Bore, 340 mm Dia Outside, 2 Rows, 114 mm W, 405000 lb Dynamic/475000 lb Static Load
22332EMBW33W800C4
MFG #: 22332EMBW33W800C4
$6,053.93
/ EA
Non-Stock Item
- Bearing Material: Steel
- Bore Diameter: 160 mm
- Cage Material: Brass
- Load Capacity: 405000 lb Dynamic/475000 lb Static
- Manufacturer Name: Timken
- Maximum Speed: 1300 rpm Grease/1500 rpm Oil
- Number of Rows: 2
- Outside Diameter: 340 mm
- Series: 223
- Temperature Rating: -65 to 392 deg F
- Type: Cylindrical Bore Type EMB
- Width: 114 mm
Misalignment, contamination, high-temperatures, even extreme speeds or critical stresses can present extra challenges when managing high radial loads. Timken® spherical roller bearings can handle it all, with innovations designed to extend bearing life and boost reliability. Timken® spherical roller bearings with hardened steel cages deliver greater fatigue strength, increased wear-resistance and tougher protection against shock and acceleration.
- Application
- Item Features
Continuous Casters, Metal Mills, Crushers, Vibrating Screens, Excavation/Loading, Miners, Bulk Material Handling, Conveying, Oil and Gas, Mud Pumps and Pulp and Paper
- Run at consistently lower temperatures than same-size competitive bearings for greater reliability
- Optimized internal geometries deliver the highest load and speed ratings in the industry
- Spherical bearings are designed to manage high radial loads even when misalignment, poor lubrication, contamination, extreme speeds or critical application stresses are present
- High-performance one-piece inner-ring, piloted, machined-brass cage
- Standard lubrication holes and groove in outer-ring
- C4 bearing radial internal clearance (RIC) smaller than C3
