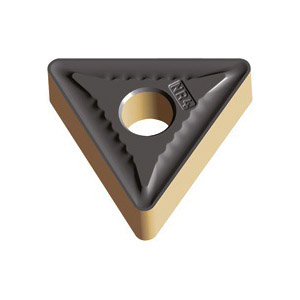

Walter 5354521 Tiger-tec® Silver Turning Insert, ANSI Code: TNMG432-NR4 WSM30, TNMG Insert, Material Grade: M, S, 432 Insert, Triangular Shape, 22 Seat, Negative Rake, Neutral Cutting, Carbide, Manufacturer's Grade: WSM30

5354521 MFG #: 5354521
Requires Quote
Walter 5354521 Tiger-tec® Silver Turning Insert, ANSI Code: TNMG432-NR4 WSM30, TNMG Insert, Material Grade: M, S, 432 Insert, Triangular Shape, 22 Seat, Negative Rake, Neutral Cutting, Carbide, Manufacturer's Grade: WSM30
  • Request For Quote: Yes
Walter Turning Insert, Series: Tiger-tec® Silver, TNMG Insert, 432 Insert, Triangular, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 22 Seat, Negative Rake, NR4 Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturer's Grade: WSM30, ANSI Code: TNMG432-NR4 WSM30, ISO Code: TNMG220408-NR4 WSM30, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+Al2O3 (ZrCN) Coated, Material Grade: M, S, For Use On: Heat-Resistant Special Alloys Based on Iron, Nickel and Cobalt, Titanium and Titanium Alloys, Austenitic Stainless Steel, Austenitic-Ferritic Steel and Steel Casting
QTY
Add to List
  • Roughing of stainless materials and high temperature alloys
  • Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crate
  • Mechanical post-treatment - unique residual stress rate, increased process reliability
  • Large, universal chip breaking area and longer tool life for ISO P geometries
  • Ground seating surface after coating for improved process reliability when working with interrupted
  • Silver flank face indicator layer for extremely easy wear detection
  • Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic de
  • Extremely smooth rake face for excellent tribochemical wear resistance
Roughing of stainless materials and high temperature alloys
Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
Mechanical post-treatment - unique residual stress rate, increased process reliability
Large, universal chip breaking area and longer tool life for ISO P geometries
Ground seating surface after coating for improved process reliability when working with interrupted cuts
Silver flank face indicator layer for extremely easy wear detection
Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
Extremely smooth rake face for excellent tribochemical wear resistance
