Guhring

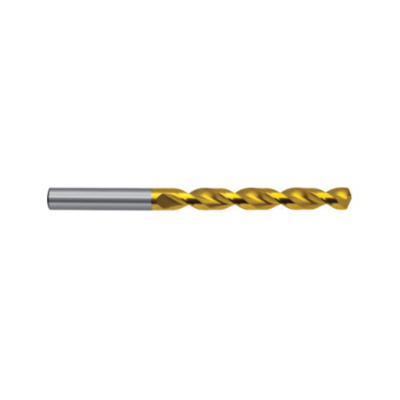

Guhring 9055220055600 5522 Type GT 500 DZ High Performance Jobber Length Drill, 7/32 in Drill - Fraction, 0.2189 in Drill - Decimal Inch, 130 deg Point, HSS-E-PM, TiN Coated
5522005.56
MFG #: 9055220055600
$33.10
/ EA
Non-Stock Item
- Applicable Materials: Steel, Stainless Steel, Gray Cast Iron, Malleable, Spheroidal Iron, Aluminum, Other Non-Ferrous Metals, Special, Super, Titanium Alloys, Hardened Steel and Chilled Cast Iron
- Country of Origin: DE
- Cutting Depth: 48.66 mm
- Cutting Direction: Right Hand
- Cutting Edge Material: HSS-E-PM
- Drill Diameter Measurement System: Imperial
- Drill Size - Decimal Inch: 0.2189 in
- Drill Size - Fraction: 7/32 in
- Finish: TiN Coated
- Flute Length: 57 mm
- Flute Type: Parabolic
- Manufacturer Name: Guhring
- Material: HSS-E-PM
- Number of Flutes: 2
- Overall Length: 93 mm
- Point Angle: 130 deg
- Point Type: Cone Relief
- Request For Quote: No
- Series: 5522
- Shank Size: 5.56 mm
- Shank Type: Straight
- Through Coolant (Yes/No): No
- Type: Type GT 500 DZ High Performance
Guhring Jobber Length Drill, Type GT 500 DZ High Performance, Series: 5522, Imperial Drill Diameter Measurement System, 7/32 in Drill Size - Fraction, 0.2189 in Drill Size - Decimal Inch, 93 mm Overall Length, 48.66 mm Cutting Depth, 2 Flutes, Parabolic Flute, 57 mm Flute Length, 5.56 mm Shank, Straight Shank, 130 deg Point, Cone Relief Point, Right Hand Cutting Direction, HSS-E-PM Cutting Edge, Through Coolant (Yes/No): No, HSS-E-PM, TiN Coated, Applicable Materials: Steel, Stainless Steel, Gray Cast Iron, Malleable, Spheroidal Iron, Aluminum, Other Non-Ferrous Metals, Special, Super, Titanium Alloys, Hardened Steel and Chilled Cast Iron
- Standards
- Item Features
DIN 338|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Especially high wear-resistance
- Especially high rigidity
