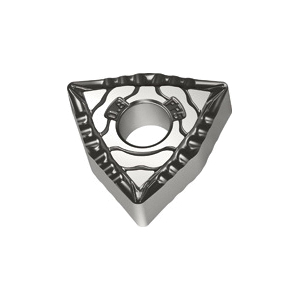

Walter 6065950 Tiger-tec® Silver Turning Insert, ANSI Code: WNMG431-FP5 WPP20S, WNMG Insert, Material Grade: P, 431 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: WPP20S

6065950 MFG #: 6065950
Requires Quote
Walter 6065950 Tiger-tec® Silver Turning Insert, ANSI Code: WNMG431-FP5 WPP20S, WNMG Insert, Material Grade: P, 431 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: WPP20S
  • Request For Quote: Yes
Walter Turning Insert, Series: Tiger-tec® Silver, WNMG Insert, 431 Insert, Trigon, 1.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, Negative Rake, FP5 Chipbreaker, 0.4 mm Corner Radius, 0.203 in Hole Dia, Manufacturer's Grade: WPP20S, ANSI Code: WNMG431-FP5 WPP20S, ISO Code: WNMG080404-FP5 WPP20S, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiCN Coated, Material Grade: P, For Use On: Steel
QTY
Add to List
  • Finishing steel materials
  • Can also be used in semi-finishing as an alternative to MP3
  • Curved cutting edge for low cutting forces
  • Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crate
  • Mechanical post-treatment - unique residual stress rate, increased process reliability
  • Large, universal chip breaking area and longer tool life for ISO P geometries
  • Ground seating surface after coating for improved process reliability when working with interrupted
  • Silver flank face indicator layer for extremely easy wear detection
  • Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic de
  • Extremely smooth rake face for excellent tribochemical wear resistance
Finishing steel materials
Can also be used in semi-finishing as an alternative to MP3
Curved cutting edge for low cutting forces
Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
Mechanical post-treatment - unique residual stress rate, increased process reliability
Large, universal chip breaking area and longer tool life for ISO P geometries
Ground seating surface after coating for improved process reliability when working with interrupted cuts
Silver flank face indicator layer for extremely easy wear detection
Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
Extremely smooth rake face for excellent tribochemical wear resistance
