H.Paulin

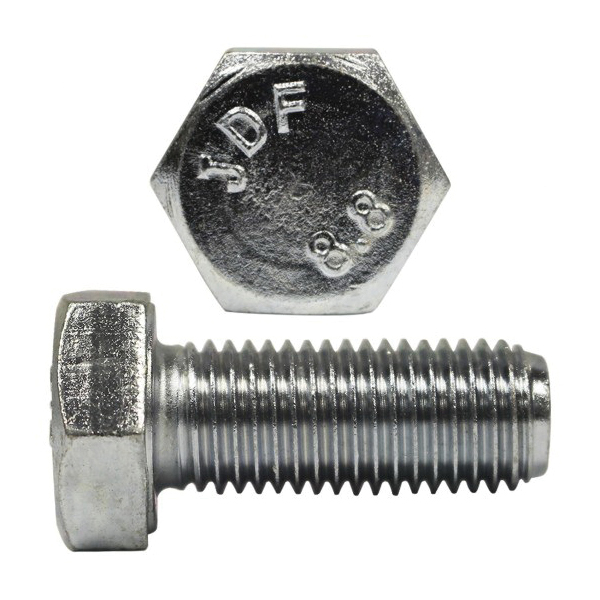

Paulin® Papco® 609-414 Fully Threaded Heat Treated Hex Head Cap Screw, M12x1.5, 30 mm L Under Head, Class 8.8 Grade, Carbon Steel, Zinc Dichromate

609-414 MFG #: 609-414
$0.60 / EA
Non-Stock Item
Paulin® Papco® 609-414 Fully Threaded Heat Treated Hex Head Cap Screw, M12x1.5, 30 mm L Under Head, Class 8.8 Grade, Carbon Steel, Zinc Dichromate
  • Country of Origin: CN
  • Diameter - Thread Size: M12x1.5
  • Finish: Zinc Dichromate
  • Grade: Class 8.8
  • Head Type: Hex
  • Length Under Head: 30 mm
  • Manufacturer Name: The Hillman Group
  • Material: Carbon Steel
  • Measurement System: Metric
  • Minimum Thread Length: 30 mm
  • Request For Quote: No
  • Series: 609
  • Tensile Strength: 118000 psi
  • Thread Type: ISO Fine
  • Type: Fully Threaded Heat Treated
Paulin® Papco® Hex Head Cap Screw, Fully Threaded Heat Treated, Series: 609, Measurement System: Metric, M12x1.5 Thread, 30 mm Length Under Head, Class 8.8 Grade, Carbon Steel, Zinc Dichromate, ISO Fine Thread, Hex Head, 118000 psi Tensile Strength, 30 mm Minimum Thread Length
QTY
Add to List
  • Item Features
  • Standards
  • The zinc coating applied to these bolts serves as a protective barrier against moderate corrosion resistance, making them suitable for both indoor and outdoor industrial use
  • Quenched and tempered for strength and holding power Use with Class 8 nuts to develop full strength of the cap screw
  • Fine threads with fully threaded or partially threaded lengths DIN 960 = Partial Thread, DIN 961 = Full Thread
DIN 961
