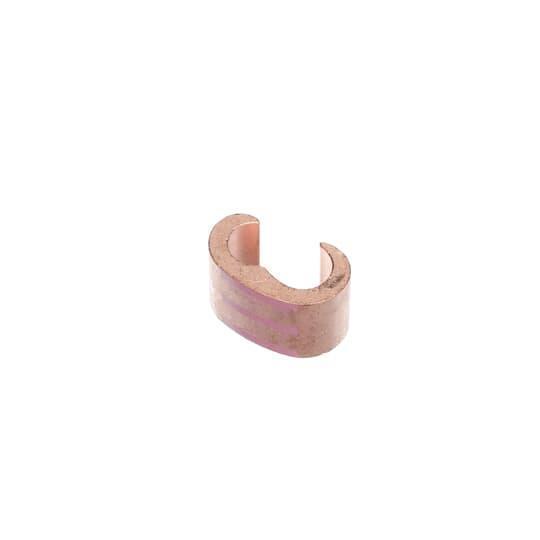

Color-Keyed® 54765 Large Size Compression Tap, C Shape, 1 Taps, 2/0 AWG to 300 kcmil Main/Run, 8 to 4/0 AWG Tap, Copper

647073 MFG #: 54765
$63.41 / EA
Non-Stock Item
Color-Keyed® 54765 Large Size Compression Tap, C Shape, 1 Taps, 2/0 AWG to 300 kcmil Main/Run, 8 to 4/0 AWG Tap, Copper
  • Conductor Type: Copper
  • Country of Origin: FR
  • Dimensions: 1 in L x 1-11/16 in H
  • Finish: Plain
  • Main/Run Size: 2/0 AWG to 300 kcmil
  • Manufacturer Name: ABB
  • Material: Copper
  • Request For Quote: No
  • Shape: C
  • Specifications: 2-Crimps, 99H Die Code, Pink Color
  • Tap Size: 8 to 4/0 AWG
  • Total Taps: 1
  • Type: Large Size
  • Voltage Rating: 600 VAC
Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
QTY
Add to List
  • Standards
  • Item Features
CSA Certified|UL File No. E9809
  • More economical than other taps and split bolts in terms of purchase, inventory, installation time, insulation and maintenance
  • Color coded for easy matching with proper die
  • Barely larger than conductor insulation once installed
  • Easy to work with in tight spaces
  • Recommended for TBM14M, TBM15I, TBM12 and 13100A installing die tools
