Miller®
Miller® 951694 Dynasty® 400 Complete TIG/Stick Welding Power Source Package With Auto-Line™ Technology and RFCS-14HD 194744 Remote Foot Control, 208 to 575 VAC Input, Air Carbon Arc (CAC-A)/Pulsed TIG (GTAW-P)/Stick (SMAW)/TIG (GTAW) Welding
951694
MFG #: 951694
$35,964.57
/ EA
Non-Stock Item
- Amperage Rating: 400 A
- Country of Origin: US
- Depth: 22 in
- Frequency: 50/60 Hz
- Height: 24-3/4 in
- Input Voltage: 208 to 575 VAC
- Manufacturer Name: Miller Electric
- Material Thickness: 0.015 to 0.625 in THK AC TIG/0.012 to 0.625 in THK DC TIG
- Polarity: AC/DC
- Series: Dynasty® 400
- Welded Material: Aluminum/Specialty Metal/Stainless Steel/Steel
- Welding Process: Air Carbon Arc (CAC-A)/Pulsed TIG (GTAW-P)/Stick (SMAW)/TIG (GTAW)
- Width: 13-3/4 in
Latest technology - powerful, compact AC/DC inverter delivers superior arc performance with total AC arc-shaping capabilities. Auto-Line™ allows connection to any voltage or frequency in the world while using half the power of a conventional machine.
- Item Features
- Standards
- Application
- Warranty
- Includes
- AC TIG features independent amplitude/amperage control allows EP and EN amperages to be set independently to precisely control heat input to the work and electrode
- Extended AC balance (30 to 99%) controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum
- AC frequency (20 to 400 Hz) controls the width of the arc cone and the force of the arc
- DC TIG features exceptionally smooth and precise arc for welding exotic materials
- High-speed DC TIG pulse controls - pulse frequency capable of pulsing 5000 pulses per second
- Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds
- Other parameters include peak amperage, peak time and background amperage
- AC waveforms - advance square wave provides a fast freezing puddle, deep penetration and fast travel speeds
- Soft square wave is used for a soft buttery arc with maximum puddle control and good wetting action
- Sine wave is for customers that like a traditional arc, it is quiet with good wetting
- Triangular wave reduces the heat input and is good on thin aluminum, it provides fast travel speeds
- Blue Lightning™ - high frequency arc starter - for more consistent non-contact starts and greater reliability compared to traditional HF arc starters
- Allows meters to be calibrated for certification
- Auto-Line™ power management technology - allows for any input voltage hookup (208 to 575 V) with no manual linking, providing convenience in any job setting
- Ideal solution for dirty or unreliable power
- Front panel memory card data port provides the ability to easily update software and expand product features
- Stick features - tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes
- Smooth running 7018 or stiffer, more penetrating 6010
- Hot Start™ adaptive control provides positive arc starts without sticking
- Cooler-On-Demand™ - feature operates the auxiliary cooling system only when needed, reducing noise, energy use and airborne contaminants pulled through the cooler
- https://youtu.be/_uS9u8o6YoU
cCSAus Certified
Aerospace, Boat/Yacht, Commercial Truck and Trailer, Construction, Education/Training, Fabrication, Infrastructure, Manufacturing, Mechanical Contracting, Pipe Fabrication/Construction, Pressure Vessel, Process Pipe, Shipbuilding, Railcar, Precision Fabrication, Heavy Fabrication, Aluminum Ship Repair, Anodized Aluminum Fabrication and Industrial Applications
3 years

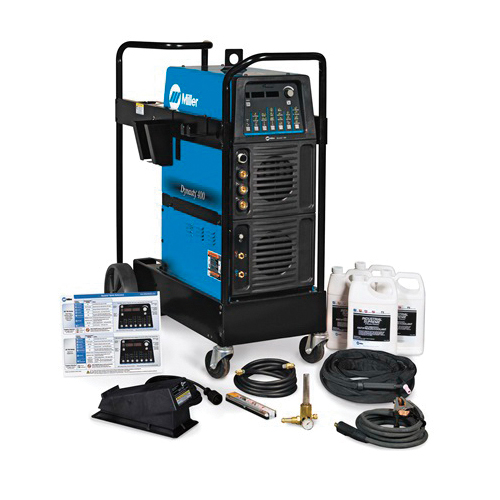

Dynasty® 400 Power Source, 8 ft (2.4 m) Primary Cord, Coolmate™ 3.5 300245 Cooler, 043810, Runner™ 300244 Cart, Weldcraft™ W-375 301268 Torch Kit and Accessories, (4) 043810 1 gal of Bottles Coolant and Quick Reference Guide
