BURNDY®
BURNDY® BD18N Type B Flexible Braid Jumper, 190/225 A, 3 in L Ferrule, 0.56 in Ferrule Hole, Copper
BD18N
MFG #: BD18N
$216.20
/ EA
Non-Stock Item
- Amperage Rating: 190/225 A
- Country of Origin: MX
- Ferrule Hole Size: 0.56 in
- Ferrule Hole Spacing: 1-3/4 in
- Ferrule Length: 3 in
- Finish: TiN Coated
- Manufacturer Name: Hubbell
- Material: Copper
- Overall Length: 18 in
- Request For Quote: No
- Specifications: 0.62 in Hole Center to End
- Thickness: 0.13 in
- Type: Type B Flexible
- Width: 0.94 in

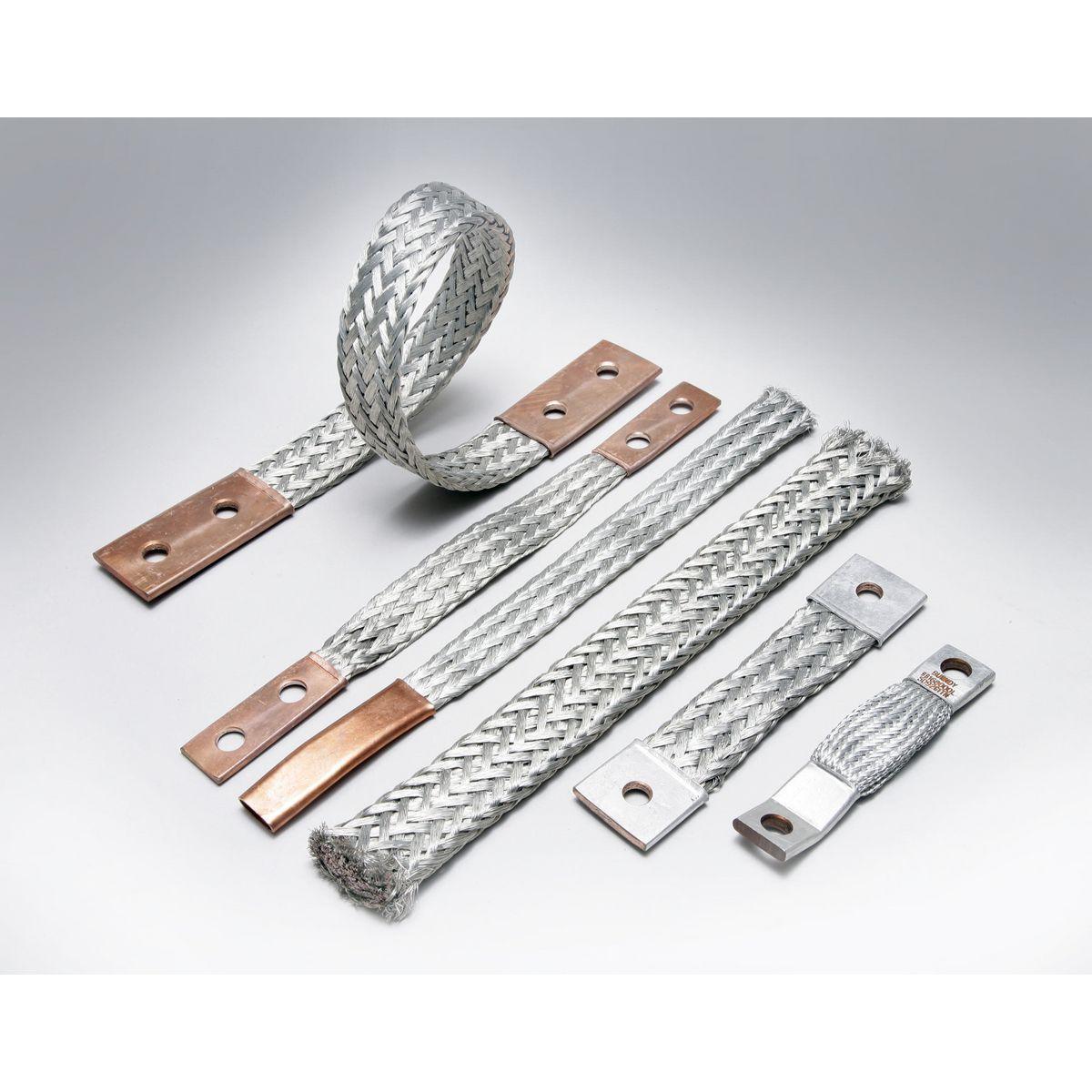

Flexible copper braid offers an economical and efficient means of protecting electrical equipment from the potentially harmful effects of shock and vibration, terminal expansion, movement of components and misalignment that may occur during the service life of the equipment. Many varieties of braid are required to meet those needs which we can build to your specifications. We also offer engineering assistance in the selection of the most appropriate standard or custom braid configuration for your application.
- Includes
- Application
- Standards
- Item Features
(1) Braid in Ferrule
For flexible copper braid jumpers designed to take up linear expansion and contraction, indoor and outdoor
RoHS Compliant|UL 467|CSA Certified
- Made of flat extra flexible, tinned, pure copper braid, with unplated, seamless, pure copper ferrules formed into a rectangular shape on each end
- 190 A indoor, 225 A outdoor amperage rating
- Pressed seamless copper ferrules provide added durability and prevent fraying, providing extra strength for a robust bonding connection
- Extra fine stranding gives enhanced flexibility
- Ferrules clearly marked with Burndy braid type
- Available in custom lengths and hole sizes to suit your needs (contact your local sales representative for non-standard configurations)
