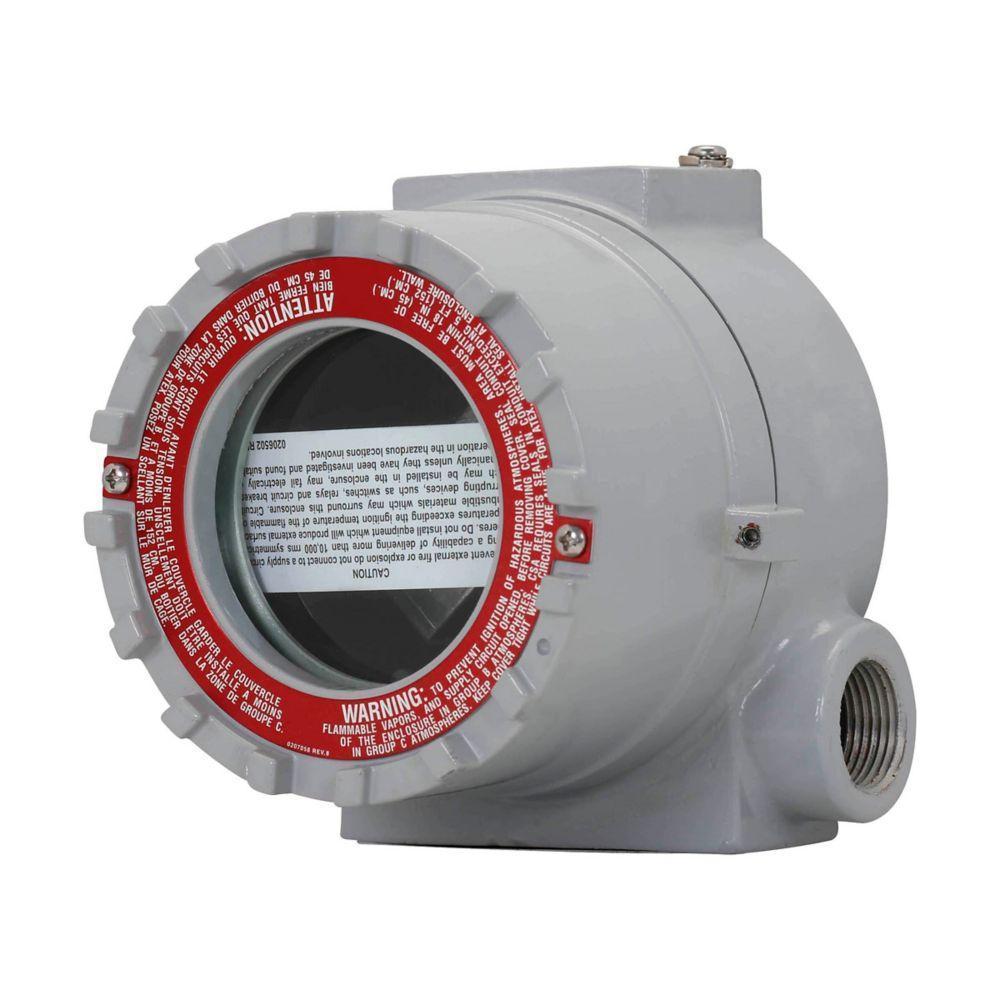

Crouse-Hinds EV2IH20 Explosionproof Photocell, 120 VAC, 35 to 400 W Tungsten, 400 VA Ballast, Flush Mount, Thermoplastic Polyester
EV2IH20
MFG #: EV2IH20
Requires Quote
Non-Stock Item
- Ballast Load: 400 VA
- Country of Origin: US
- Dimensions: 5.25 in W x 4.54 in H
- Enclosure Type: NEMA 3/4/7B/7C/7D/9E/9F/9G
- Frequency Rating: 50/60 Hz
- Manufacturer Name: Eaton
- Material: Thermoplastic Polyester
- Mounting Type: Flush
- Request For Quote: Yes
- Series: EV2IH
- Timing Range: 10 s
- Tungsten Rating: 35 to 400 W
- Type: Explosionproof
- Voltage Rating: 120 VAC
Designed for use with Crouse-Hinds series Champ HID and fluorescent light fixtures, V2PC photocells are factory sealed, field installed devices that offer reliable, dusk-to-dawn lighting control in Class I, Division 2 locations. V2PC photocells provide automatic control of outdoor lights in critical passageways at night and they save energy by operating light fixtures only when necessary. They are ideal for walkways, parking areas, outdoor process areas, security lighting or any outdoor lighting application in Class I, Division 2 locations.
- Standards
- Item Features
- Application
Class I Division 1, 2 Groups B/C|Class II Division 1 Groups E/F/G|Class II Division 2 Groups F/G|Class III|CSA C22.2 File No.35|UL File No. 844
- Field installable
- Solid state design for performance and dependability
- Factory sealed components
- Luminaires turn-on at 3 fc, off at 8 fc insuring that the luminaires are operating only when needed
- Built-in 10 s time delay to eliminate nuisance tripping
- 8 year operating life
- Furnished with 6 in stranded 600 VAC color-coded wire leads
- Constructed from corrosion-resistant thermoplastic polyester
- Corrosion-resistant thermoplastic PolTRUEter
Industrial Facilities and Factories, Facility, Lighting and Lighting Controls Applications
