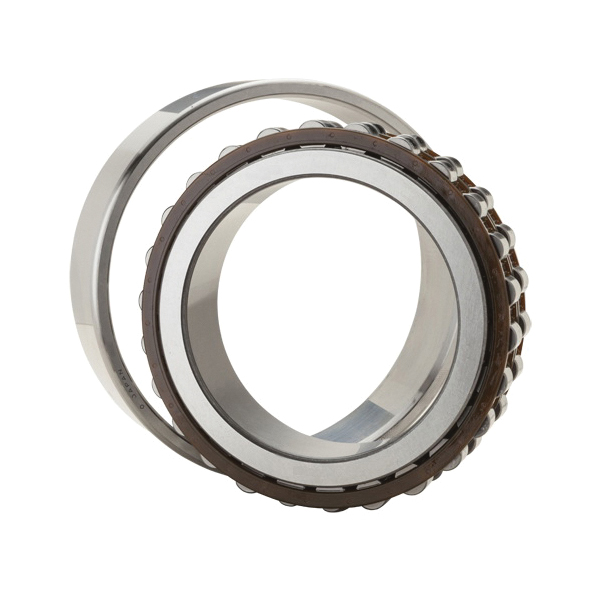

NTN NN3036KC1NAP4 Large Precision Cylindrical Roller Bearings, 180 mm Dia Bore, 280 mm OD, 2 Rows, 74 mm W, 995000 N Load

NN3036KC1NAP4-NTN MFG #: NN3036KC1NAP4
$7,242.34 / EA
Non-Stock Item
NTN NN3036KC1NAP4 Large Precision Cylindrical Roller Bearings, 180 mm Dia Bore, 280 mm OD, 2 Rows, 74 mm W, 995000 N Load
  • Bearing Material: Hardened Alloy Steel
  • Bore Diameter: 180 mm
  • Cage Material: Machined Brass
  • Closure Type: Open
  • Country of Origin: JP
  • Load Capacity: 995000 N
  • Manufacturer Name: NTN
  • Maximum Speed: 2200 rpm Grease/2600 rpm Oil
  • Number of Rows: 2
  • Outside Diameter: 280 mm
  • Series: NN3
  • Temperature Rating: -40 to 120 deg C
  • Type: Large
  • Width: 74 mm
Cylindrical roller bearing, the rollers and raceways are in linear contact. Consequently this type of bearing can support a larger radial load than a point-contact ball bearing. Also, its structure is suitable for high-speed operation. A cylindrical roller bearing used for the main spindle of a machine tool can have either a double- or single row configuration, and certain variants have a tapered bore so the radial internal clearance can be adjusted.
QTY
Add to List
  • Application
  • Item Features
  • Standards
  • Includes
  • Warranty
Construction, Wind Energy, Metals Manufacturing, Mining, Food and Beverage, Precision and Machine Tools, Paper and Forestry, Oil and Gas, Agriculture and Electric Motors
  • ISO class 4 precision rating
  • 1:12 tapered bore
  • Without oil hole
  • C1 radial clearance less than C2
  • 565000 N dynamic/995000 N static
  • High strength 2-piece machined brass cage
AAIA|ABMA|AEM|BSA|PTDA|RBEC 7
Ribbed Inner Ring
1 Year
