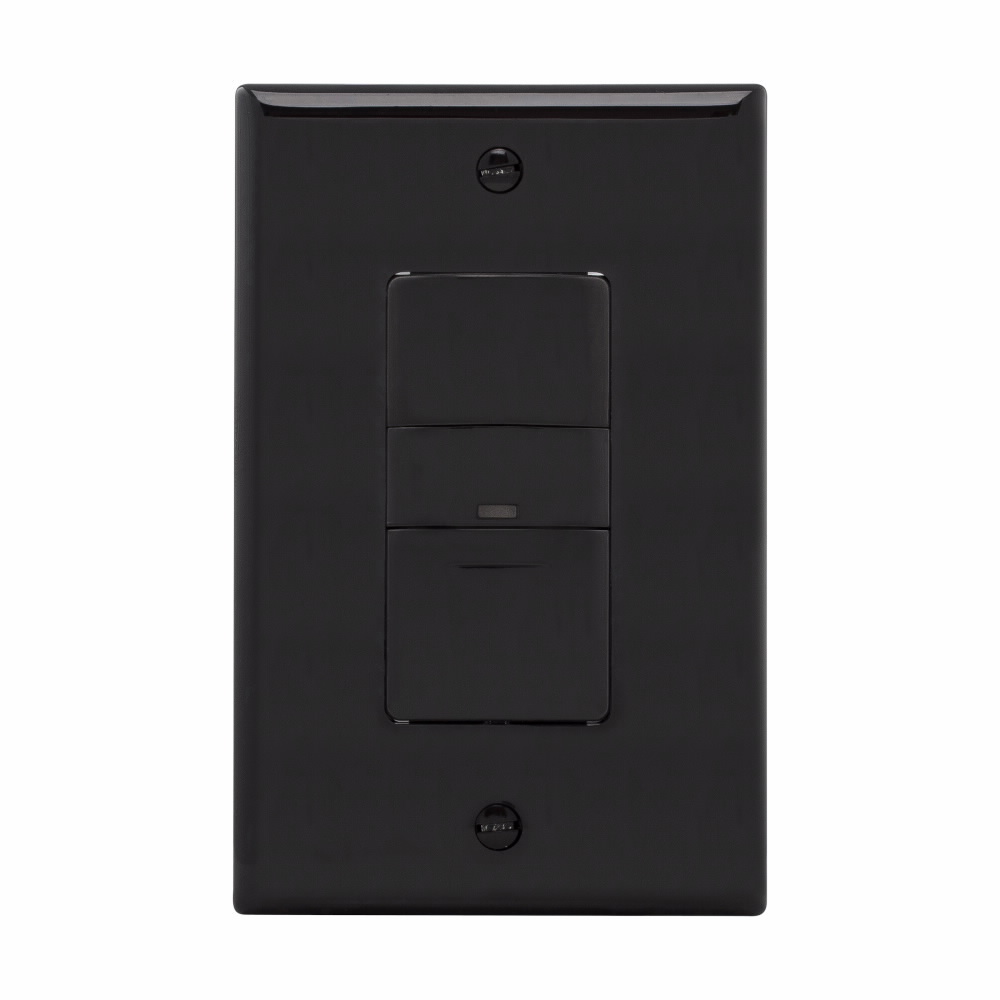

EATON OS306U-BK 1-Pole 1-Phase Passive Infrared Occupancy Motion Sensor Switch, 120 VAC, 450 sq-ft Coverage, 180 deg Viewing, Wall Mount

OS306U-BK MFG #: OS306U-BK
$65.06 / EA
Non-Stock Item
EATON OS306U-BK 1-Pole 1-Phase Passive Infrared Occupancy Motion Sensor Switch, 120 VAC, 450 sq-ft Coverage, 180 deg Viewing, Wall Mount
  • Manufacturer: Eaton
  • Brand: EATON
EATON Occupancy Motion Sensor Switch, 1-Pole 1-Phase Passive Infrared, Series: OS306U, 120 VAC, 5 A, 600 W Power, 450 sq-ft Coverage, 180 deg Viewing, 30 min Time Delay, Incandescent/Halogen Lamp, 60 Hz Response, Wire Lead Connection, Manual On/Automatic Off/Automatic On/Automatic Off Control Output, Wall Mounting, 0 to 40 deg C, Polycarbonate, Black, 2.6 in H x 1.55 in W x 1.85 in D Dimensions
QTY
Add to List
  • Convenient installation and test mode for set-up
  • Adjustable, built-in light level sensor
  • Selectable time delay
  • For use with incandescent lamps, halogen fixtures, electronic and magnetic fluorescent, CFL, LED ele
  • Three-way wiring
  • Manual OFF pushbutton
  • Color matched, reinforced lens is tamper-resistant
  • Occupancy switch provides automatic ON/automatic OFF (OS306U)
  • No neutral required
  • Vacancy switch provides manual ON/automatic OFF (VS306U)
  • Adjustable 5/15/30 min test time delay
Convenient installation and test mode for set-up
Adjustable, built-in light level sensor
Selectable time delay
For use with incandescent lamps, halogen fixtures, electronic and magnetic fluorescent, CFL, LED electrical motor loads
Three-way wiring
Manual OFF pushbutton
Color matched, reinforced lens is tamper-resistant
Occupancy switch provides automatic ON/automatic OFF (OS306U)
No neutral required
Vacancy switch provides manual ON/automatic OFF (VS306U)
Adjustable 5/15/30 min test time delay
