T&B®

Ready-Lite RMI-1000-1-AD Interruptible Mini Inverter, 120 VAC Input, 120 VAC Output, 11.6 A, 1000 W

RMI-1000-1-AD MFG #: RMI-1000-1-AD
Requires Quote
Non-Stock Item
Ready-Lite RMI-1000-1-AD Interruptible Mini Inverter, 120 VAC Input, 120 VAC Output, 11.6 A, 1000 W
  • Amperage Rating: 11.6 A
  • Color: White
  • Country of Origin: CA
  • Dimensions: 20-1/4 in H x 24 in W x 14-1/2 in D
  • Finish: Powder Coated
  • Frequency Rating: 60 Hz
  • Input Voltage: 120 VAC
  • Manufacturer Name: ABB
  • Material: Steel
  • Mounting Type: Surface
  • Output Voltage: 120 VAC
  • Power Rating: 1000 W
  • Request For Quote: Yes
  • Series: RMI
  • Temperature Rating: 68 to 86 deg F
  • Type: Interruptible

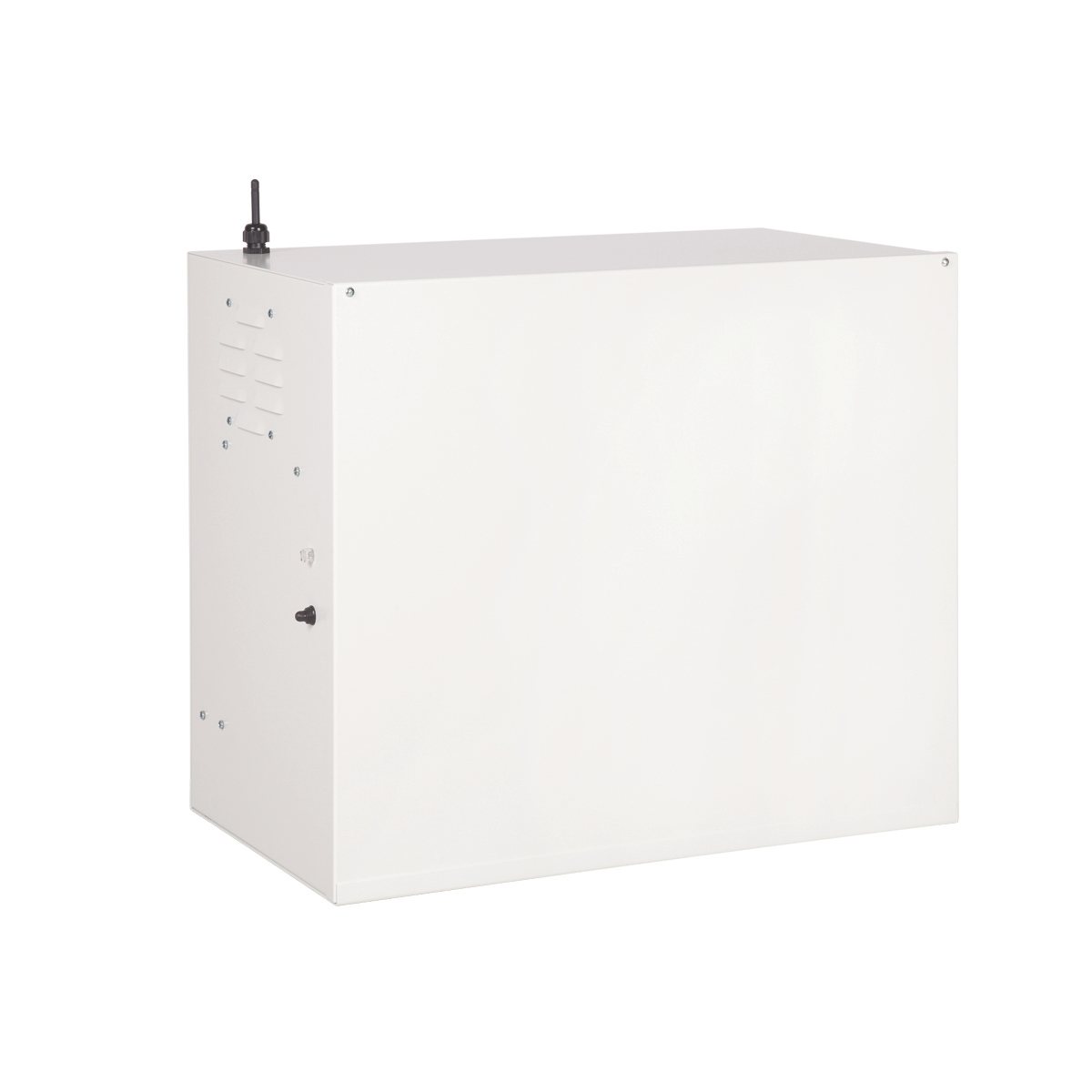

The mini-inverter is a cUL listed stand alone pure sine wave output inverter designed to provide power to designated emergency lighting fixtures. In a power loss situation, it will supply power from the onboard battery supply. The mini-inverter works in conjunction with incandescent, LED and fluorescent fixture types and will automatically run switched, normally-on or normally-off designated emergency fixtures. The mini-inverter is ideal for applications requiring an emergency source for lighting arrangements that utilize multiple lamp and fixture types and is available in surface mount and comes with a 1-year warranty and 9-year pro-rata battery warranty.
QTY
Add to List
  • Standards
  • Application
  • Item Features
CSA 141-15|cUL Listed|NEC Certified
For architecturally sensitive applications or when maintenance costs and testing of individual unit equipment becomes significant
  • Auto diagnostics, audible, self-powered
  • Components high efficiency pure sine wave inverter
  • Emergency lighting supplied from one convenient, reliable source
  • Replaceable output fuse protection
  • Valve Regulated Lead Acid (VRLA) battery provides long life and is maintenance-free
  • Line voltage allows remote mounting of emergency fixtures, distances up to 1000 ft
  • Low battery voltage disconnect
  • Unit comes standard with electronic lockout and brownout circuits
  • May accept load to it full capacity when load feature power factor of 0.9 or more
  • Nexus® system interface available with an improved minimum lost detection of 10%
  • Standard lighting control override for 0 to 10 VDC dimming systems
